Hybrid Racing Formula Cold Air Intake - Honda Civic Type R 2017-2021

Hybrid Racing Formula Cold Air Intake - 2017-2021 Honda Civic Type R (FK8)

We started with a simple question: if we could build everything we wanted into one FK8 intake, what would it look like? It'd make more power through the whole pull, wake up the turbo and induction sound when you get on it, look like it belonged in the engine bay, put the filter within easy reach, and keep up with you as you kept modifying your Civic Type R.

Three MAF housings, seven velocity stacks, several filters, flow-bench testing, 16 material and shielding samples, and 65 dyno pulls later, we had our answer: the Formula Intake. It's our formula for what we think is the best intake you can bolt to an FK8.

The first thing most people want to know about an intake is how much power it makes, so let's answer that head-on. Here are three comparisons we ran on the same 2019 FK8, from the most dramatic result to the most true-to-life.

Just Swap It: Factory ECU Untouched

We started simple. Factory airbox, untouched OEM Honda ECU. Then we bolted on the Formula 76mm Street and changed nothing else. Power jumped from 270.2 to 300.2 wheel horsepower, with no check engine light and no knock correction anywhere in the log. That 30-wheel-horsepower jump honestly shocked us, because modern turbo cars are tightly controlled and a bolt-on intake is supposed to do very little. It isn't 30 horsepower from airflow alone, since the new MAF signal also shifted the ECU's fueling and load math. Even so, it shows how hard the car responded to the swap.

Add FlashPro: Same Base Map, Both Intakes

Next we added Hondata FlashPro and ran both intakes on the same Base Map, before loading any Formula-specific MAF scaling. The curves stayed close through the middle of the pull, then the Formula pulled ahead toward redline. It's a useful real-world middle step, not the final tuned comparison.

Tuned Right: The Honest Like-For-Like

Finally, we set the MAF scaling correctly for each intake and tuned the car around each setup. This is the closest apples-to-apples comparison you'll find, and it's the number to expect on a tuned FK8. The Formula averaged about 7 more wheel horsepower and 8 more lb-ft of torque from 2,500 to 6,800 rpm. More telling than the peak, it made more usable power through most of the pull instead of just touching a higher number up top.

That's the short answer. Our complete FK8 Formula Intake dyno test lays all six runs side by side and digs into the MAF signal, the fuel correction, the area under each curve, the little calibration details, and our full test method, with interactive graphs you can line up and race against each other.

The Short Version

• About 7 more wheel horsepower and 8 more lb-ft of torque on average from 2,500 to 6,800 rpm in the matched Custom Tune comparison
• 76mm Street housing for most stock and lightly modified FK8s
• 89mm Race housing for higher-power builds that need more MAF sensor range
• Enclosed XLPE airbox with upper and lower outside-air feeds
• More turbo, induction, and recirculating-valve sound when you're on the throttle
• Filter lifts out through the lid without pulling the airbox
• Bolts to factory mounting points with no cutting, drilling, or front-bumper removal
• Works with the factory turbo inlet pipe

Which MAF Housing Should You Run?

The Formula comes in two versions. Go with the 76mm Street for a stock or lightly modified FK8, whether your car still has the OEM Honda ECU or you're already on FlashPro. You can install it without tuning, though we strongly recommend FlashPro or another solution that can set the MAF scaling correctly. Go with the 89mm Race for a higher-power build that needs more MAF sensor range so your ECU and tuner keep measuring airflow accurately. Both versions use the same factory Honda MAF sensor, and only the housing and its matching velocity stack change.

76mm Street

The 76mm Street is the right call for most stock and lightly modified FK8s. It's the housing we used for the comparisons above, and it runs on the factory ECU. If your car's on FlashPro, load the correct Formula MAF scaling so the ECU reads the new intake path properly.

89mm Race

The 89mm Race is for higher-power builds that are bumping into the factory MAF sensor's limit with the 76mm Street, or for cars being built around a bigger turbo and more power down the road. You can tune it properly on a lightly modified FK8, but it gives you more sensor range than that car needs. Around 400 wheel horsepower, have your tuner start watching MAF voltage. Let the datalog make the call, not the power number by itself.

On our 433.5-wheel-horsepower shop FK8, the 76mm Street signal hit 4.96 volts and stopped climbing near the top of the pull. The 89mm Race kept that same sensor inside its measurement range. The 89mm Race inlet requires Hondata FlashPro or an equivalent solution that can apply the matching MAF calibration.

More Sound, Easier Service

The factory airbox does a good job of muffling everything. The Formula lets more of the K20C1 and turbo through: a deeper induction note as the engine loads up, crisper spool when you're on it, and a sharper rush from the recirculating valve when you lift. It makes the car feel more alive when you get into it without droning at you the rest of the time. At a steady cruise, the extra sound settles right back down.

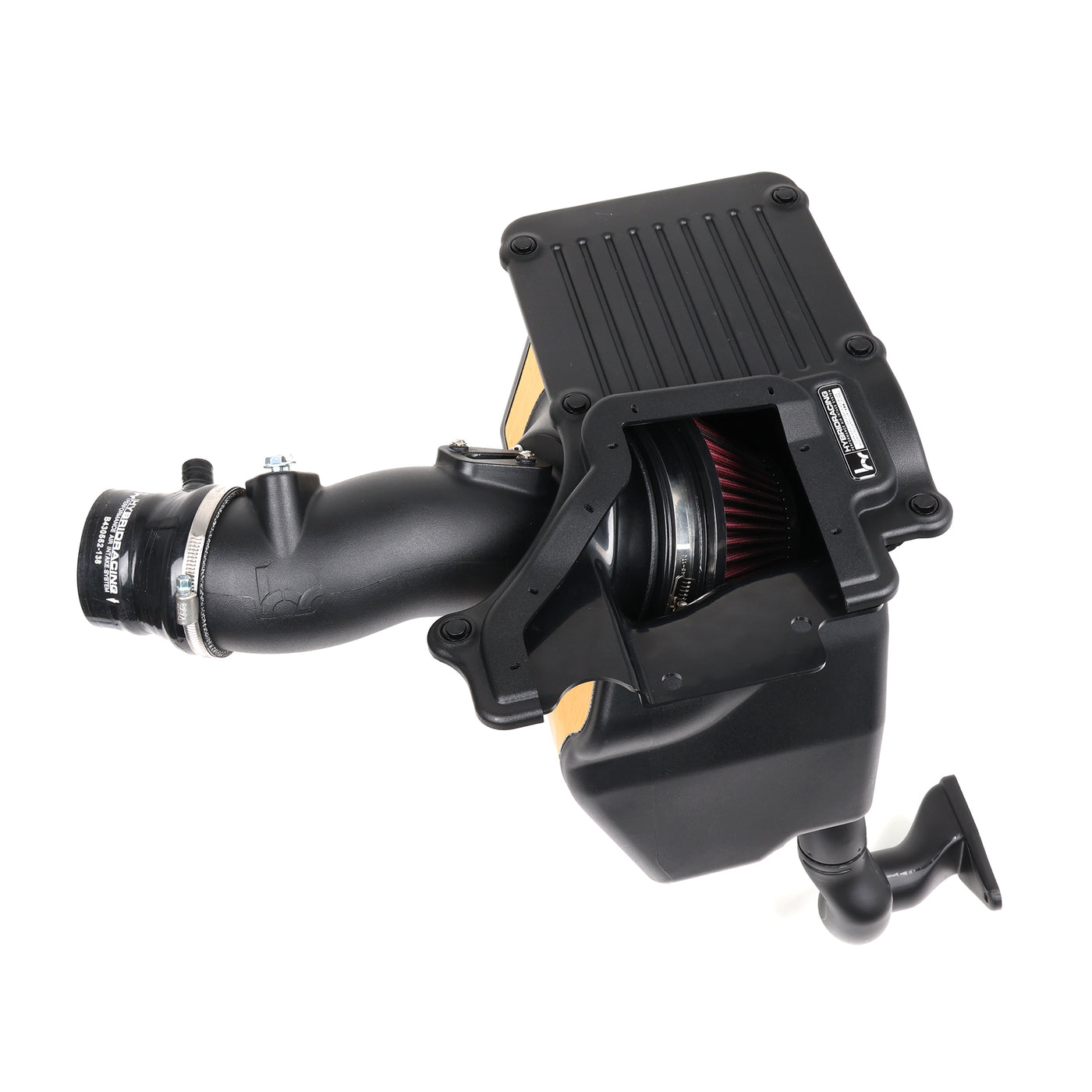

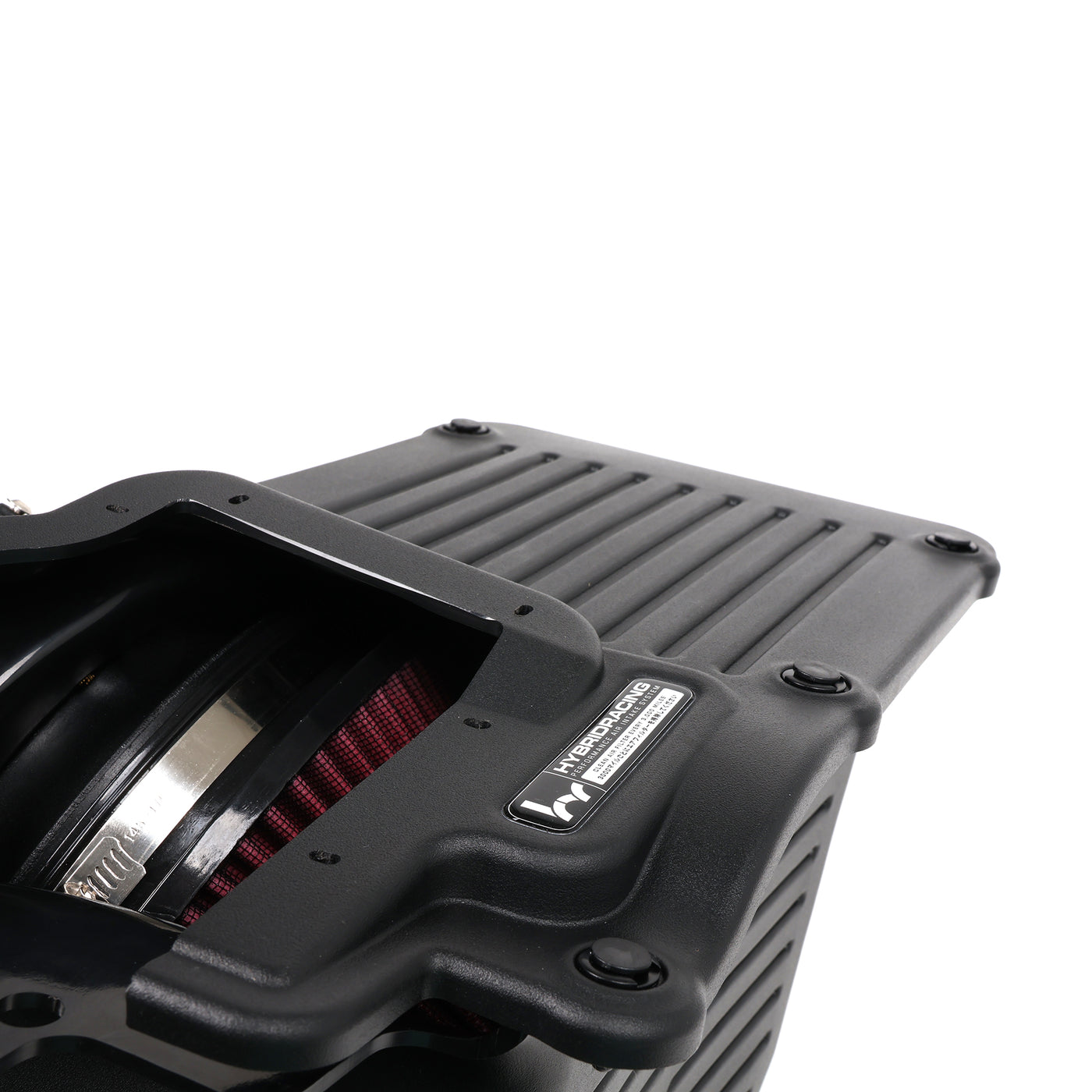

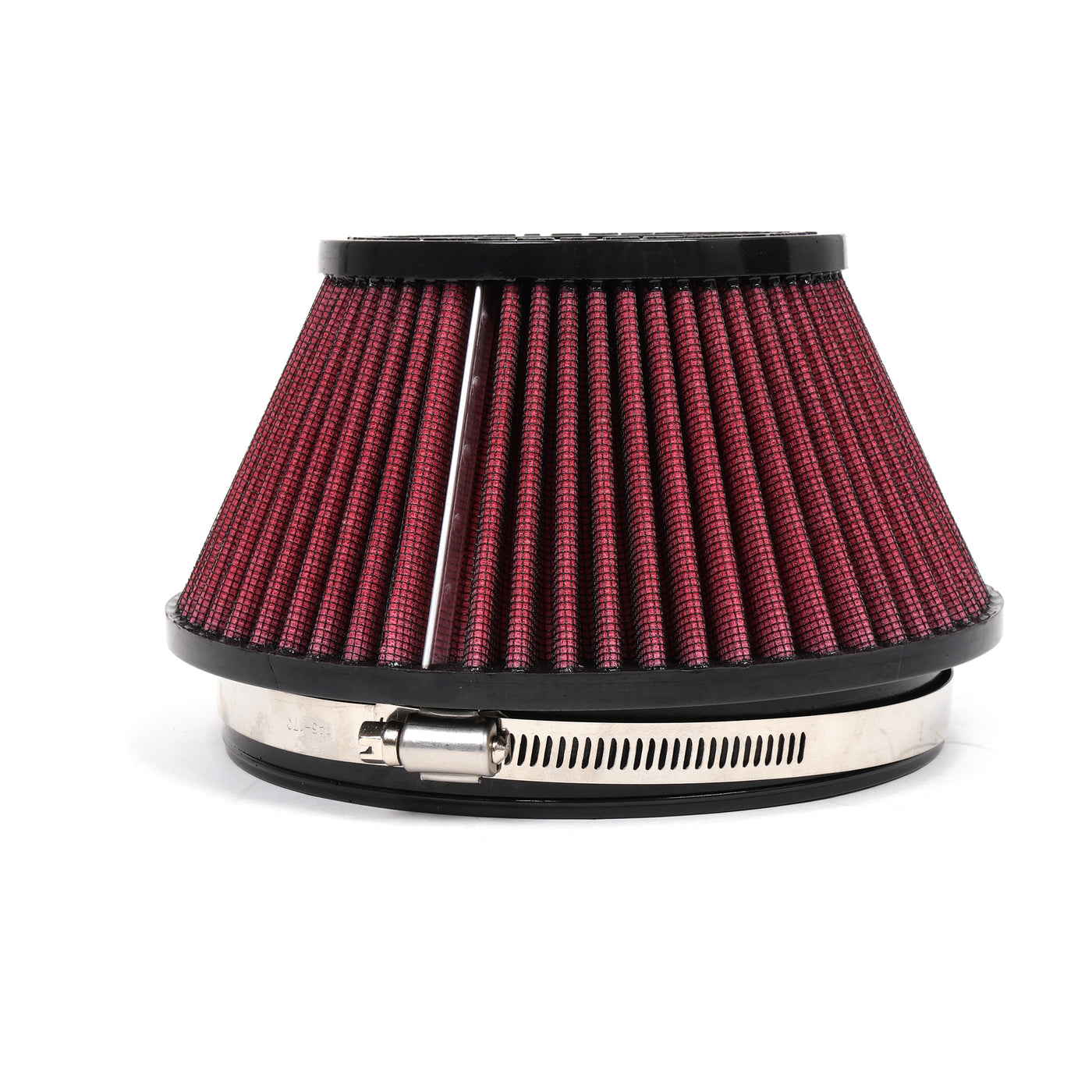

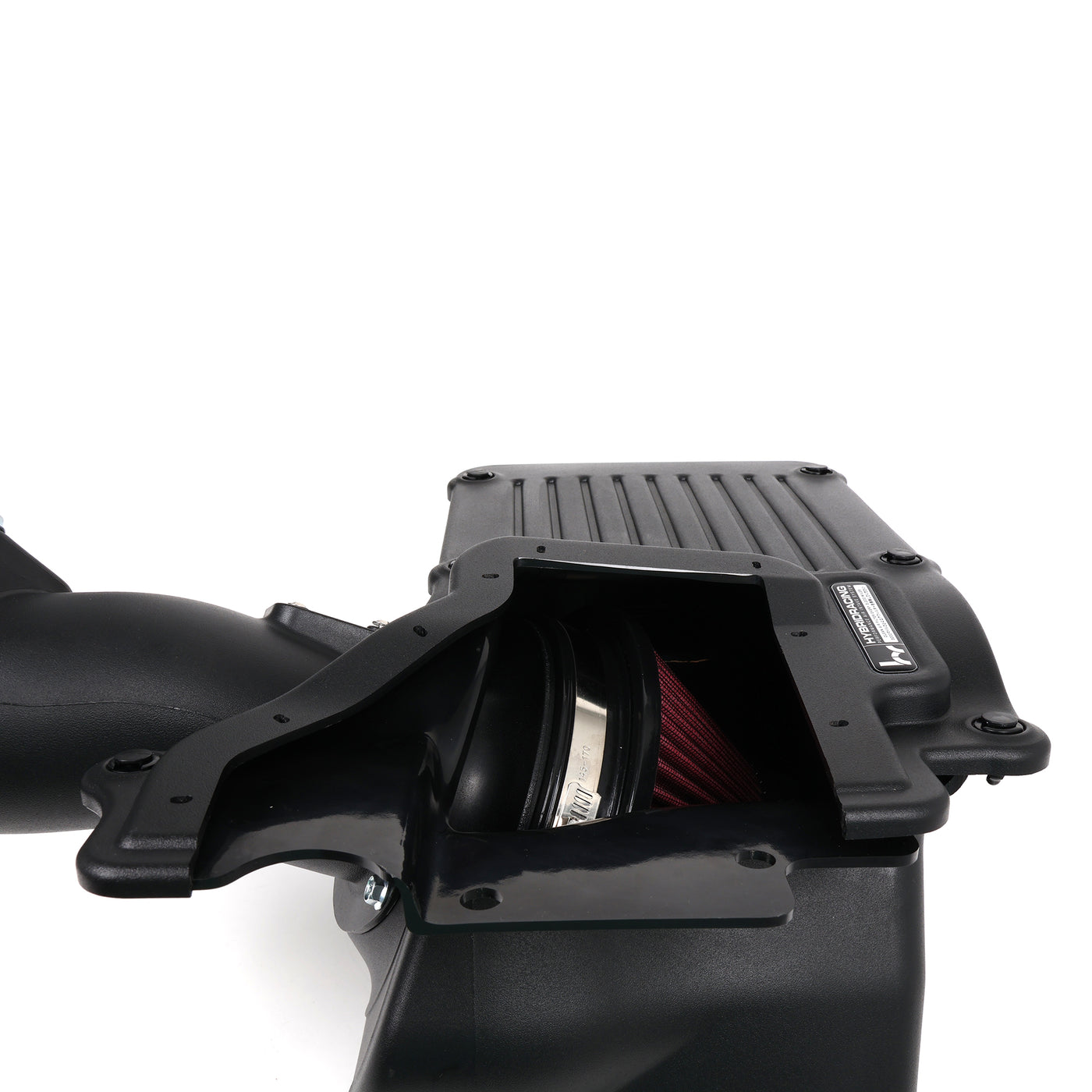

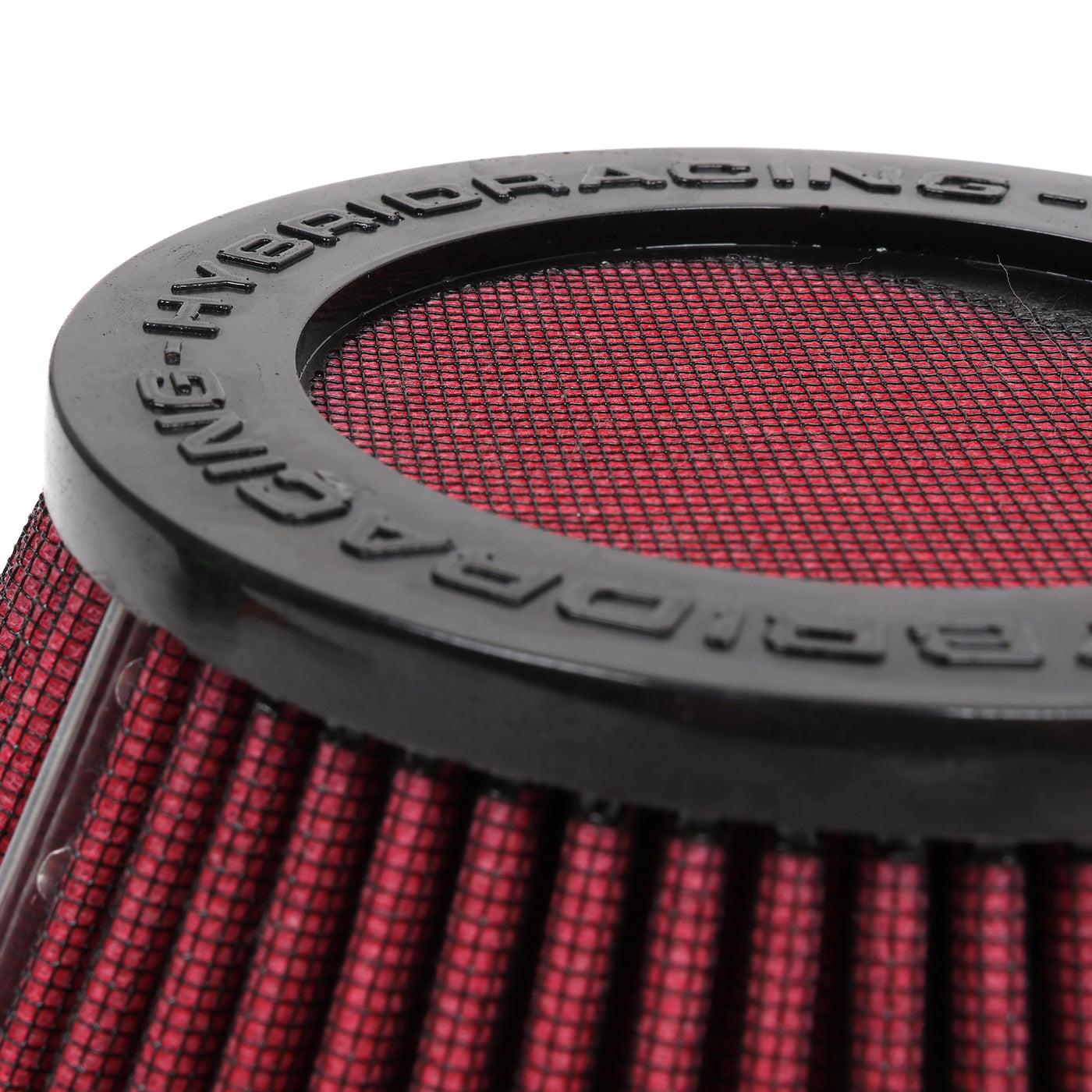

Pop the two OEM-style quick-release clips and one clamp to check, service, or swap the filter without pulling the airbox out of the car. The red oiled-cotton filter is washable and reusable. Every 5,000 miles, clean it per the service sticker, let it dry all the way, then re-oil it lightly. Go easy on the oil near the MAF sensor.

Secondary Cold Air Intake Inlet

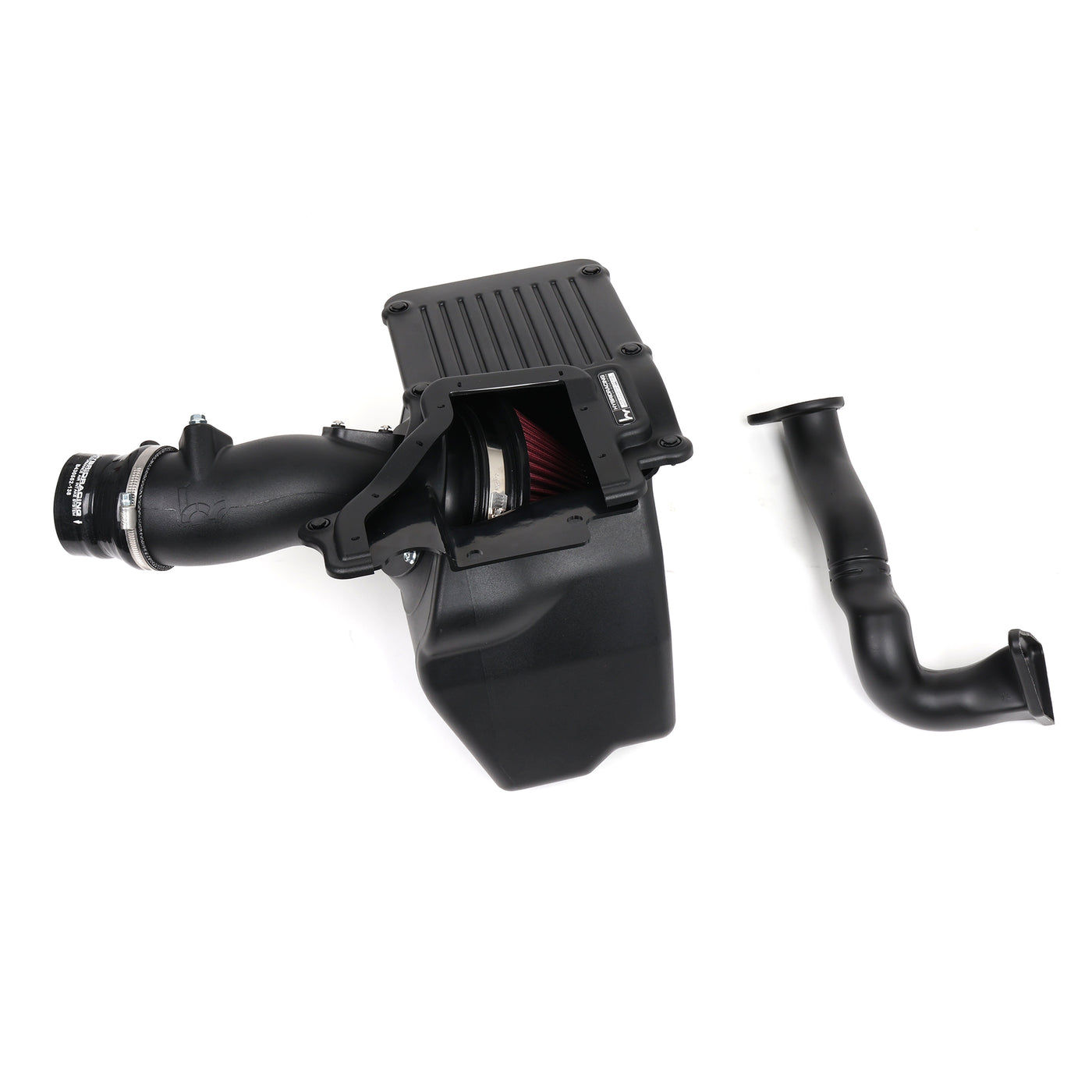

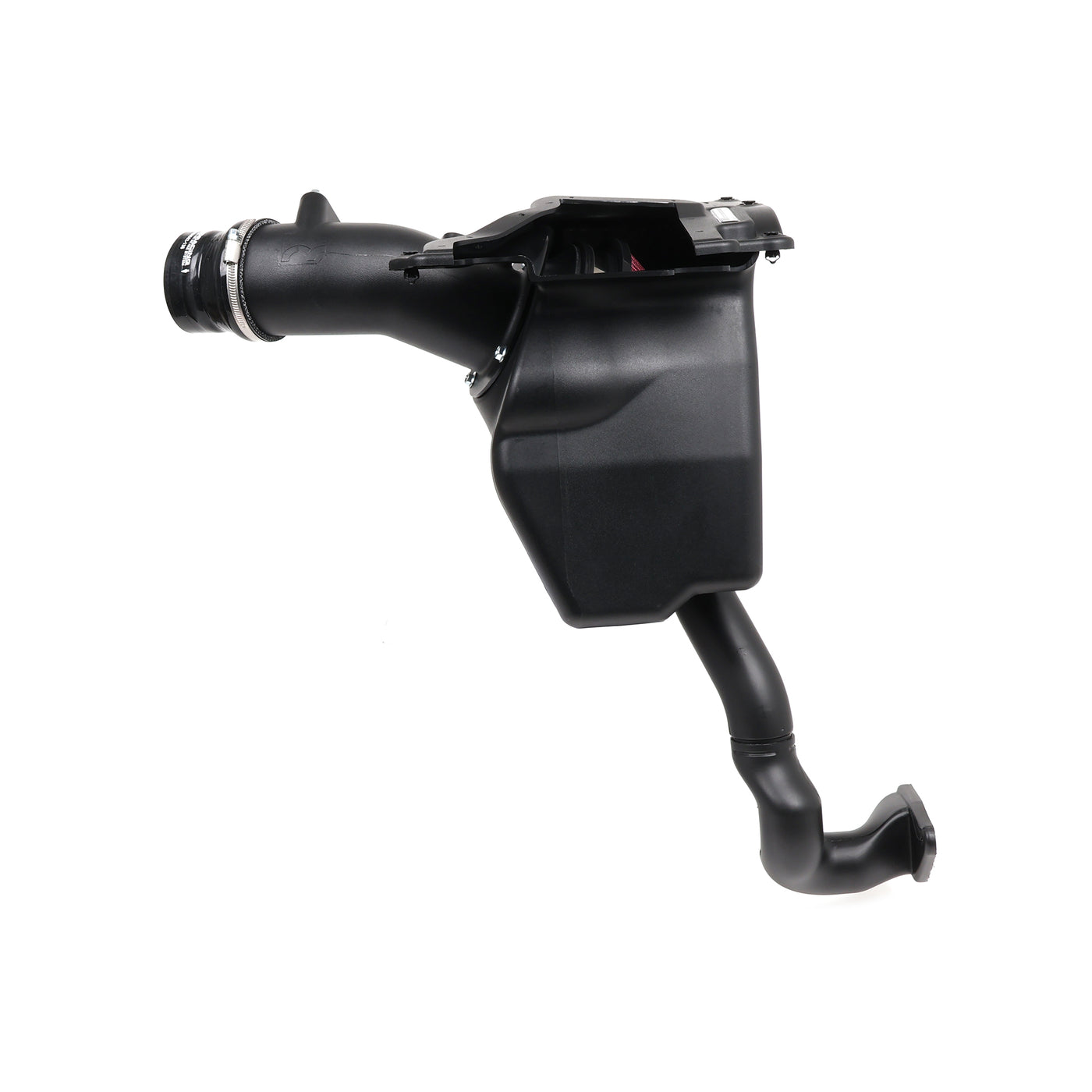

Flow-bench and dyno testing showed the intake breathed better with a second source of outside air, so we kept it in the production design. The Formula keeps the factory grille feed, then adds two lower inlet tubes behind the bumper near the brake-duct area. Together, those two paths give the filter more inlet area and another supply of outside air, instead of leaning on the factory opening alone.

Built For The Heat

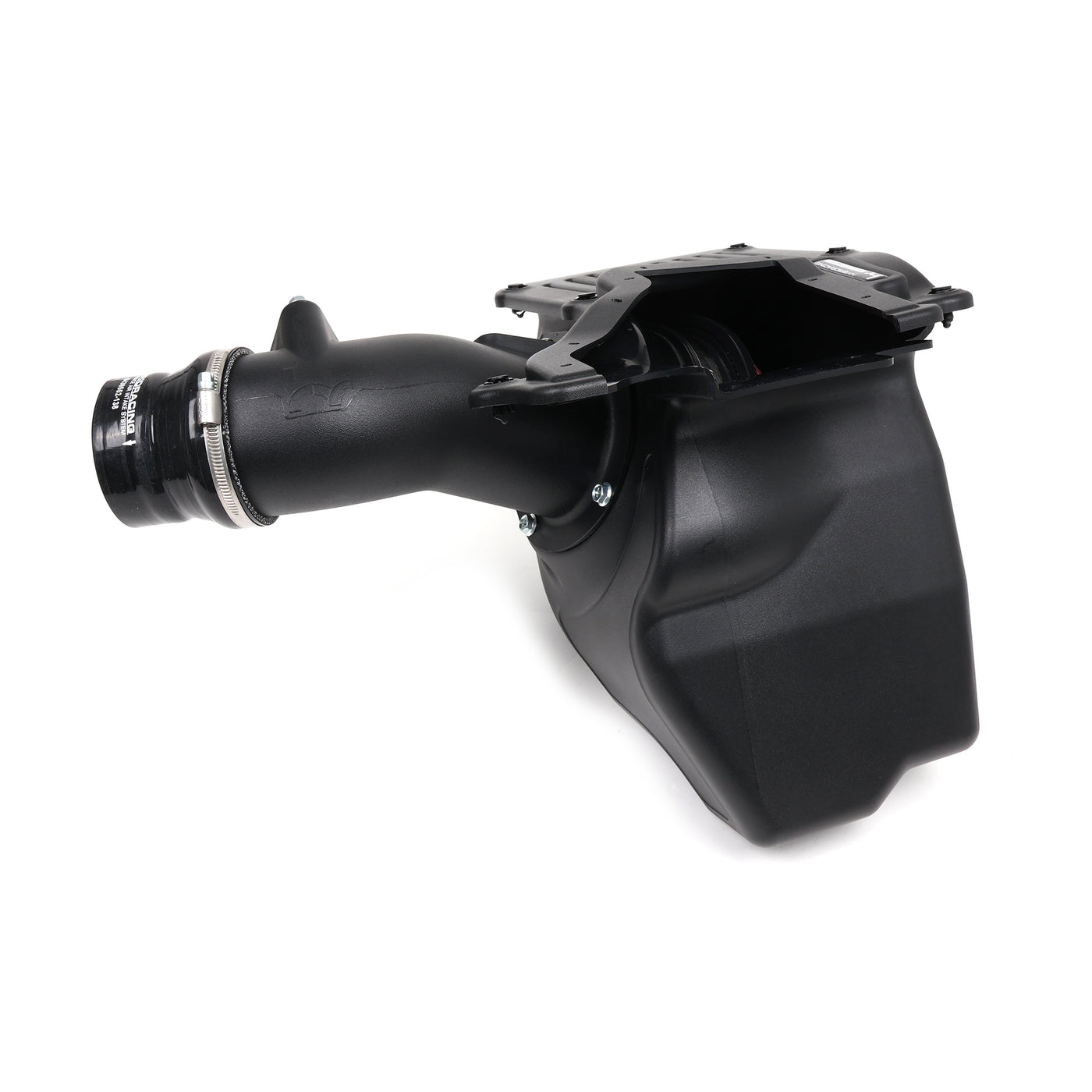

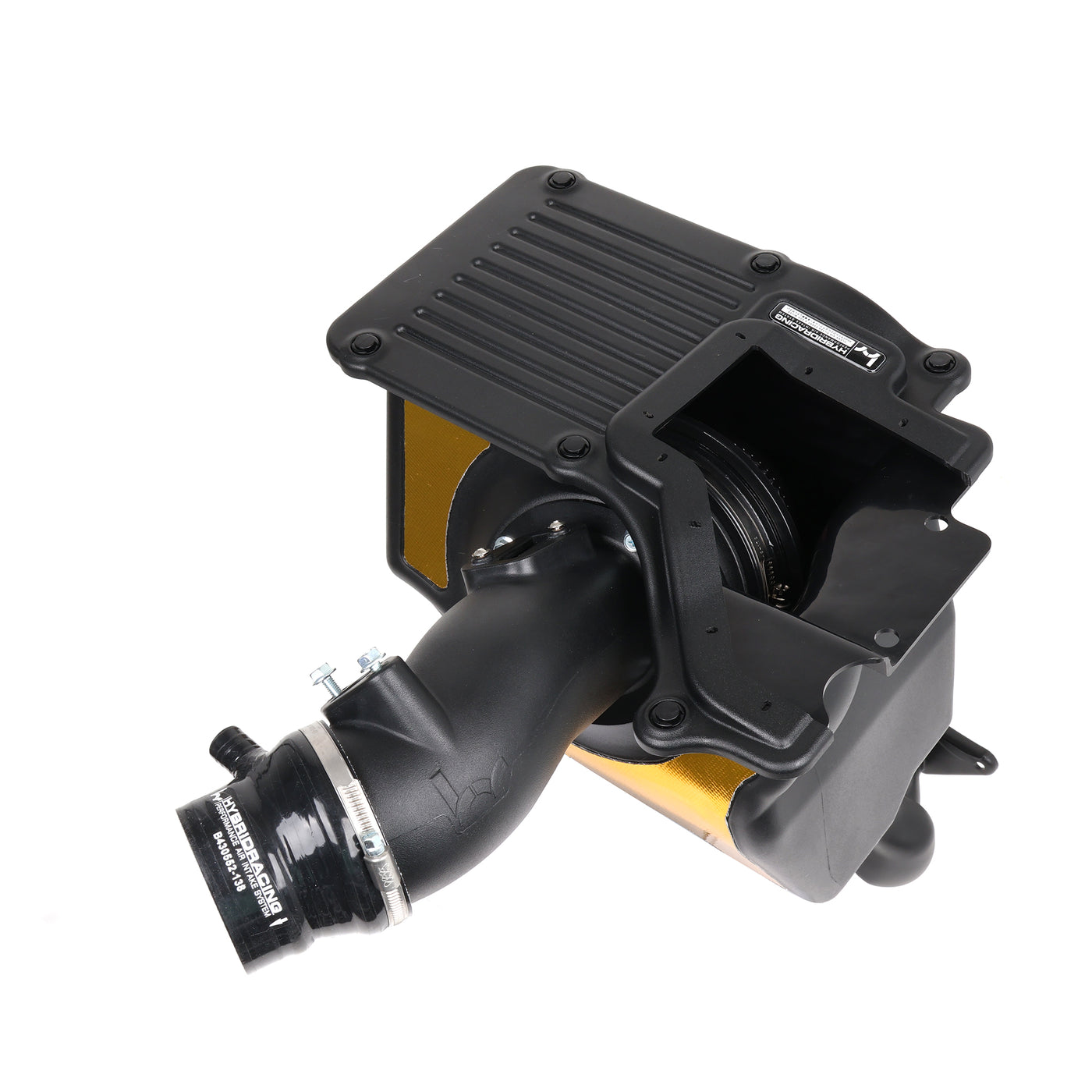

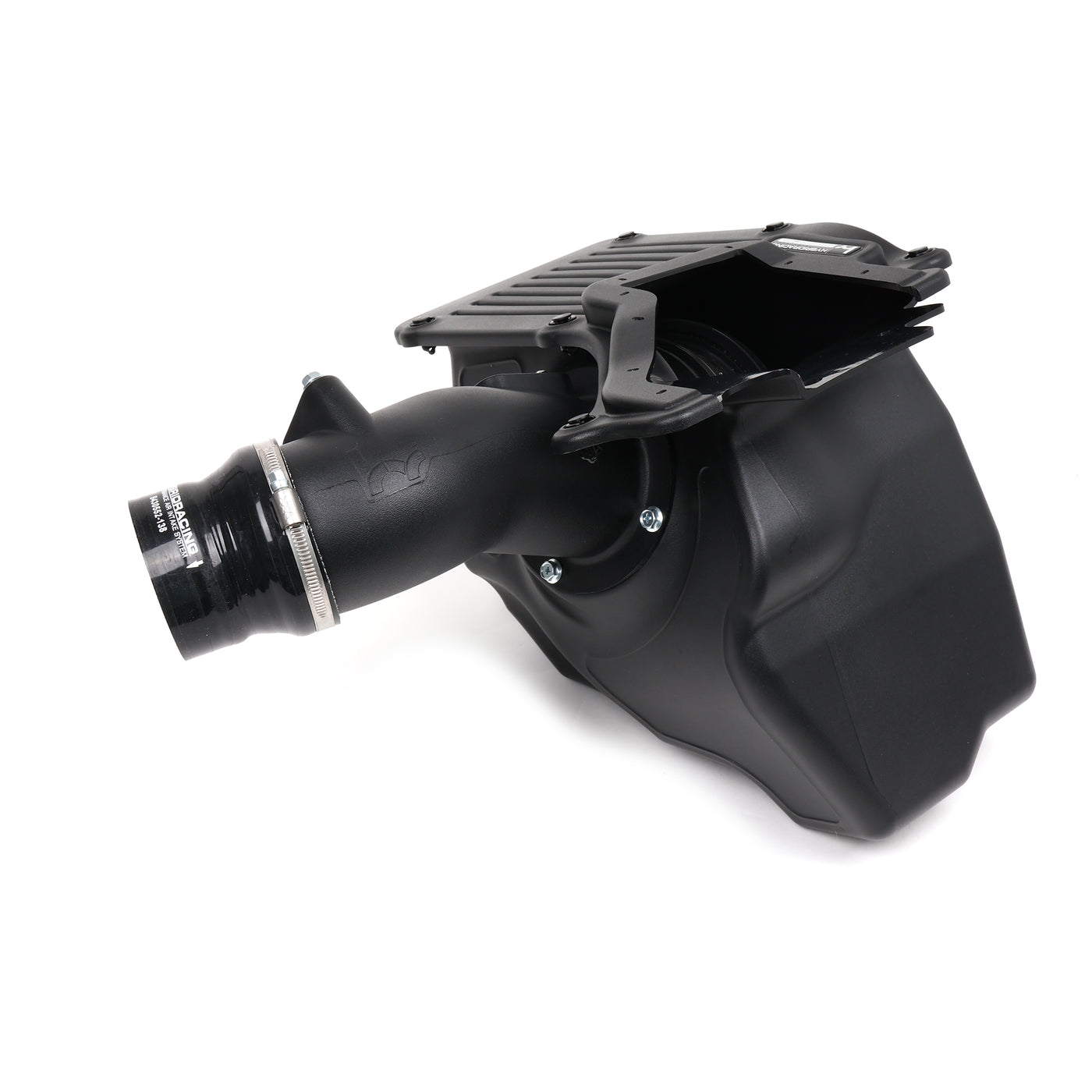

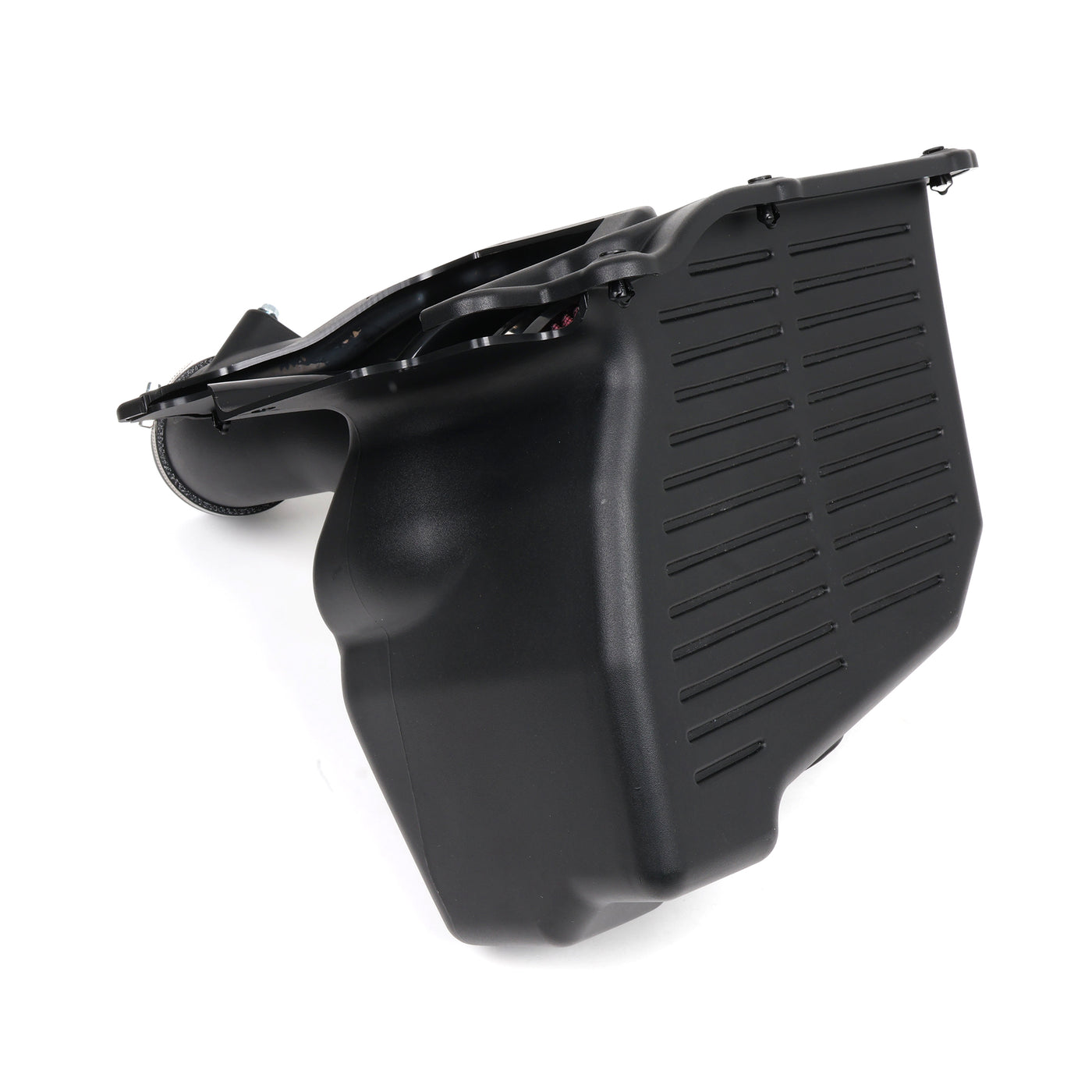

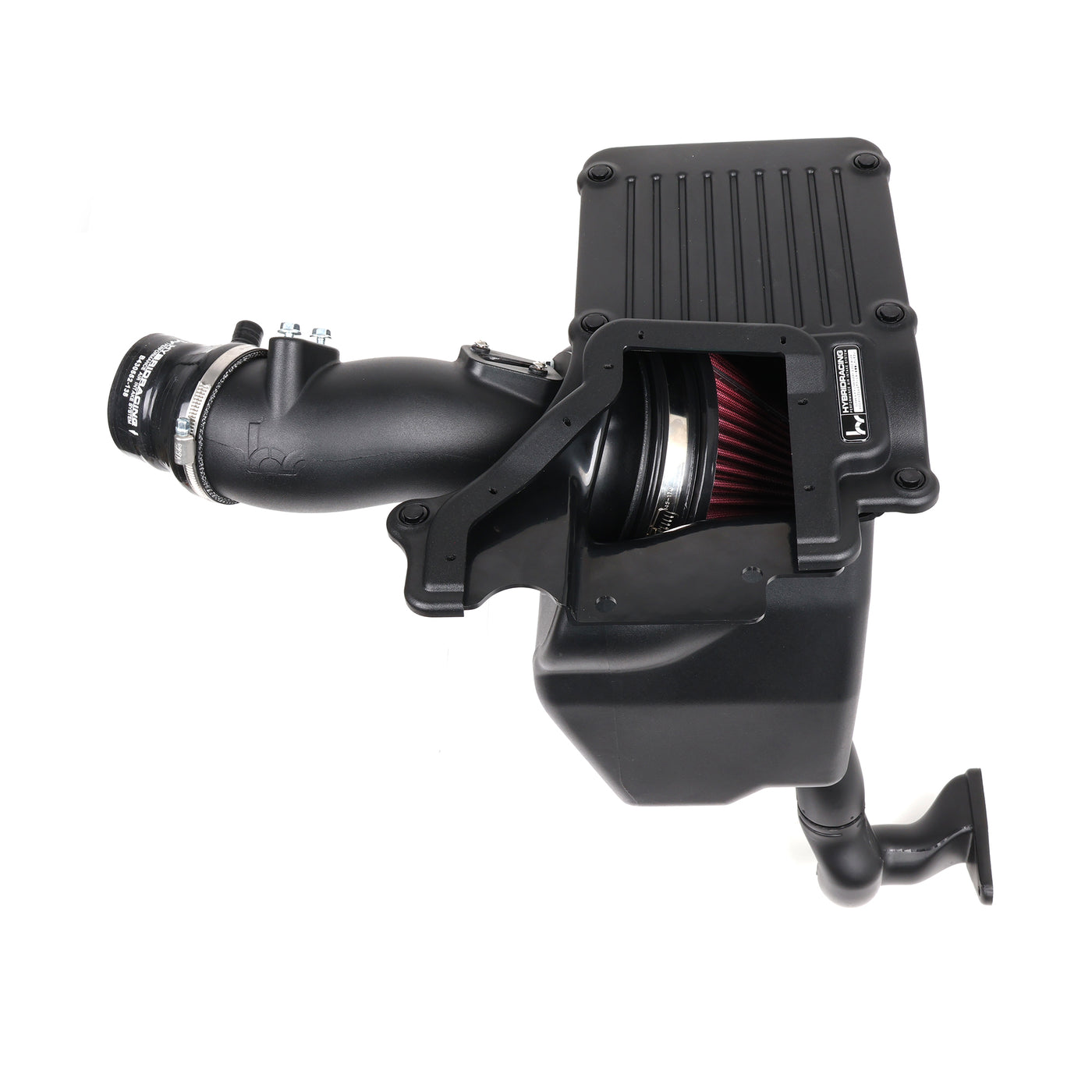

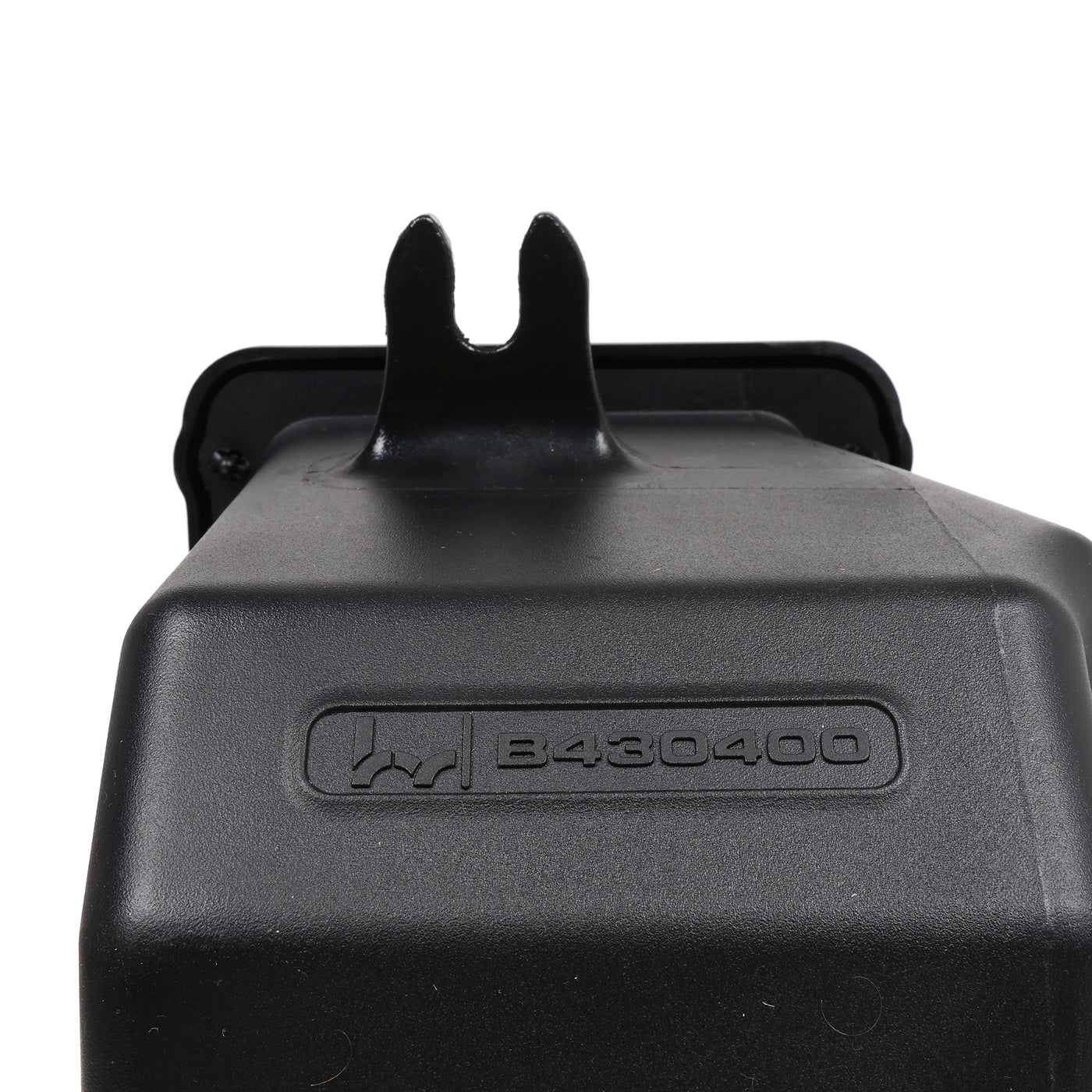

We kept the filter sealed inside an enclosed airbox rather than leaving it hanging out next to the radiator and turbo. The airbox is molded from XLPE, with a reflective shield on the side facing the turbo.

We compared 16 material and shielding samples before we settled on it. In that bench test, XLPE soaked up heat more slowly than aluminum, while the reflective material did the best job of rejecting radiant heat. That's why we run a molded XLPE airbox with a reflective shield on the turbo side.

Complimentary Launch Edition Basemap

Direct-purchase Launch Edition kits with the 76mm Street come with a complimentary locked Hondata FlashPro basemap for 91-octane pump gas or better. We built the basemap around the Hybrid Racing Formula 76mm Street Intake and Hybrid Racing Formula Exhaust, with room for the common bolt-ons you've already got or might add later.

To request it, email us with your order number, VIN, vehicle year, and full modification list.

This is a conservative starting calibration, not a custom tune. You can't edit or unlock the file, but FlashPro datalogging still works. If your car has other mods, or you want to take the tune further for your local elevation, fuel, and conditions, reach out. We'll help you find the right calibration and tuner for your setup.

We don't offer the complimentary basemap for the 89mm Race. Cars that need the larger housing usually have supporting mods and already need custom tuning, and there are too many possible parts combinations for one file to cover safely. We'll work with you and your tuner, or point you to one, to get the right calibration for your car.

Fitment And Installation

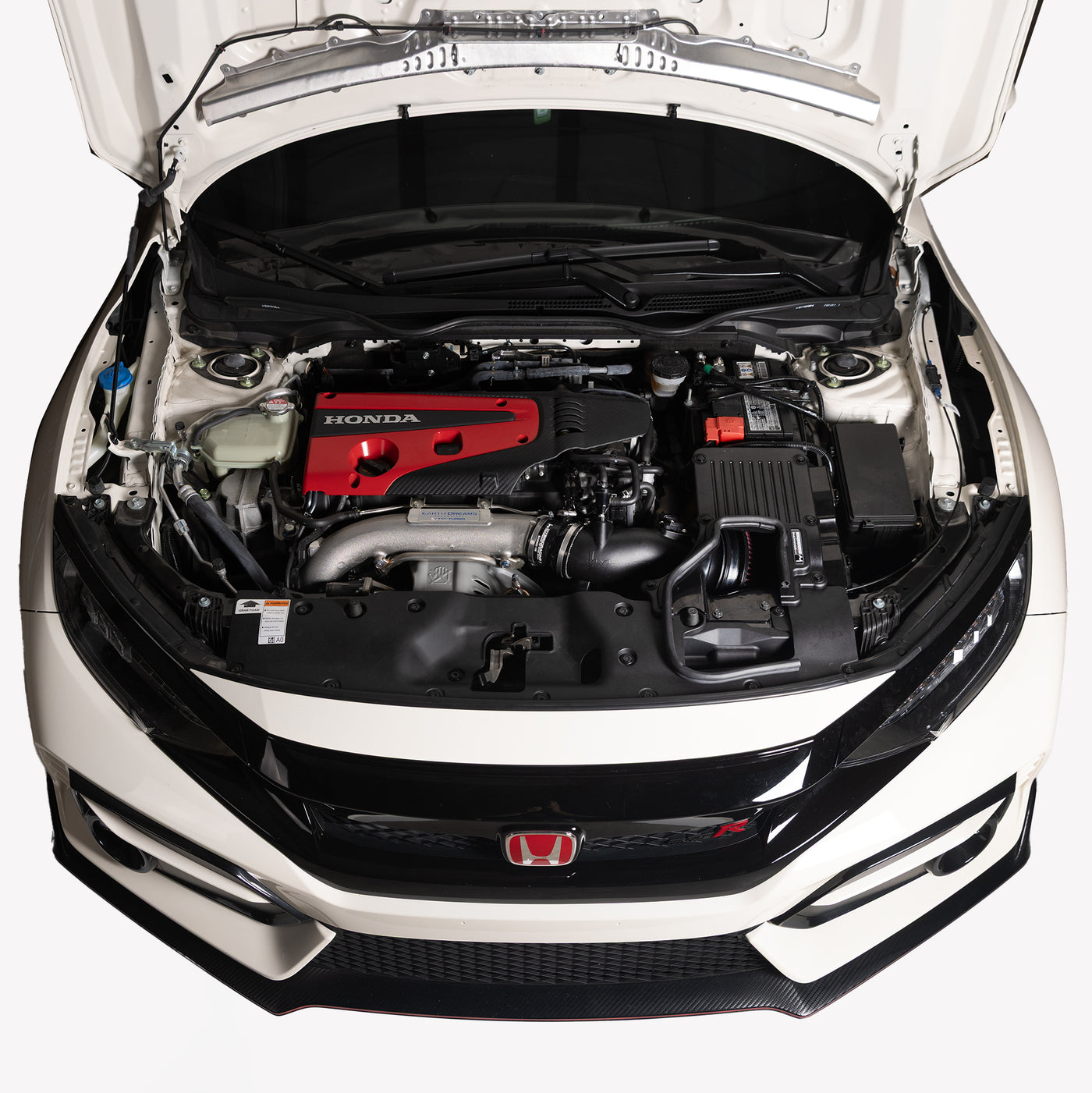

The Formula fits every 2017 through 2021 Honda Civic Type R FK8, including the 2021 Limited Edition. It takes the factory MAF sensor and reuses the factory mounting points, intake seal, and rubber grommets. No cutting, drilling, or front-bumper removal required.

Most installs take one to two hours with basic hand tools. To fit the lower air feeds, you'll safely raise the front of the car, pull the driver-side front wheel, and fold back the inner fender liner. Our detailed install guide walks you through every step. The included coupler fits the factory turbo inlet pipe and measures roughly 69mm inside where it meets the inlet, so if your car has an aftermarket turbo inlet, double-check its connection size before you order, since you may need a different coupler.

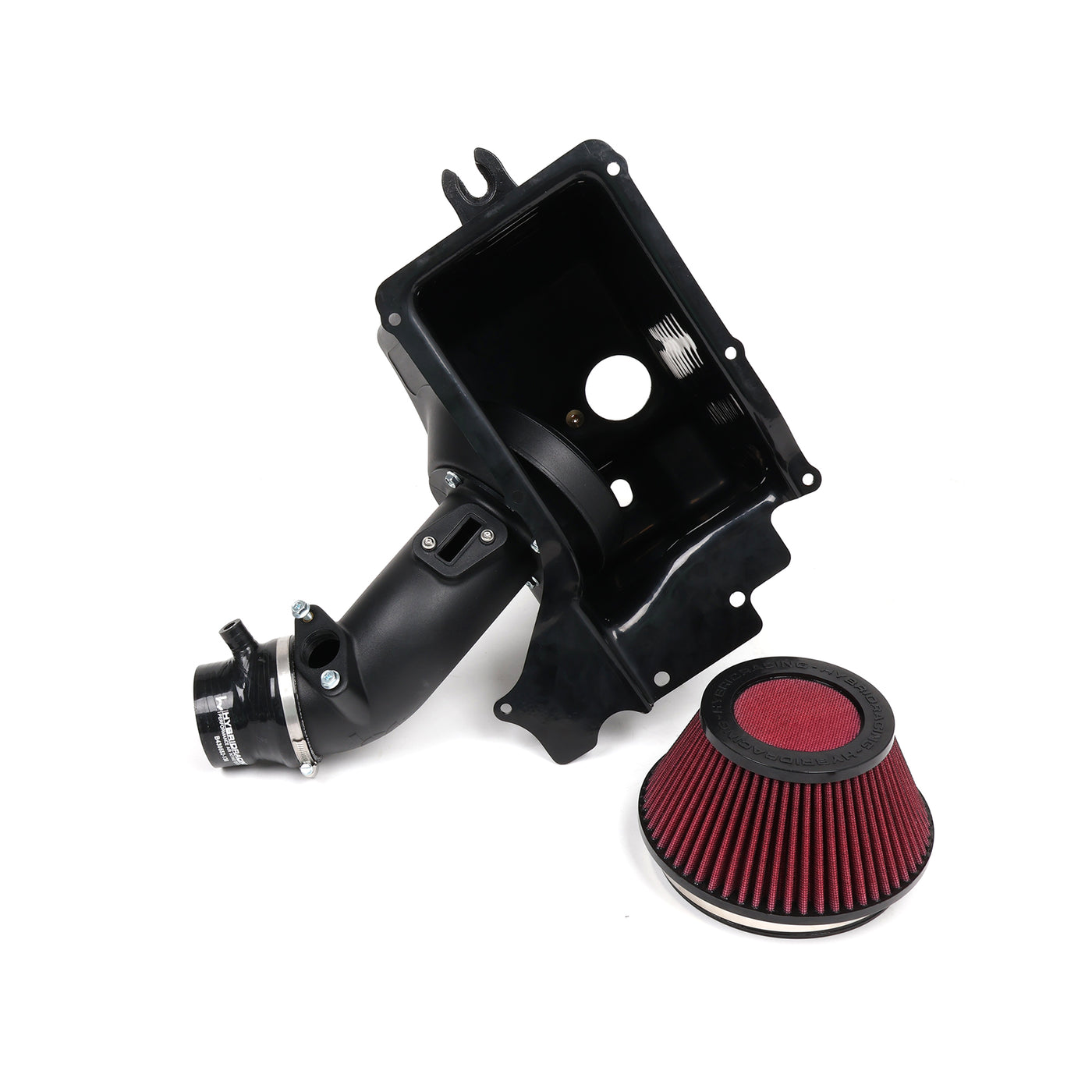

What Comes In The Kit

• XLPE airbox and lid
• Elliptical velocity stack matched to your chosen housing

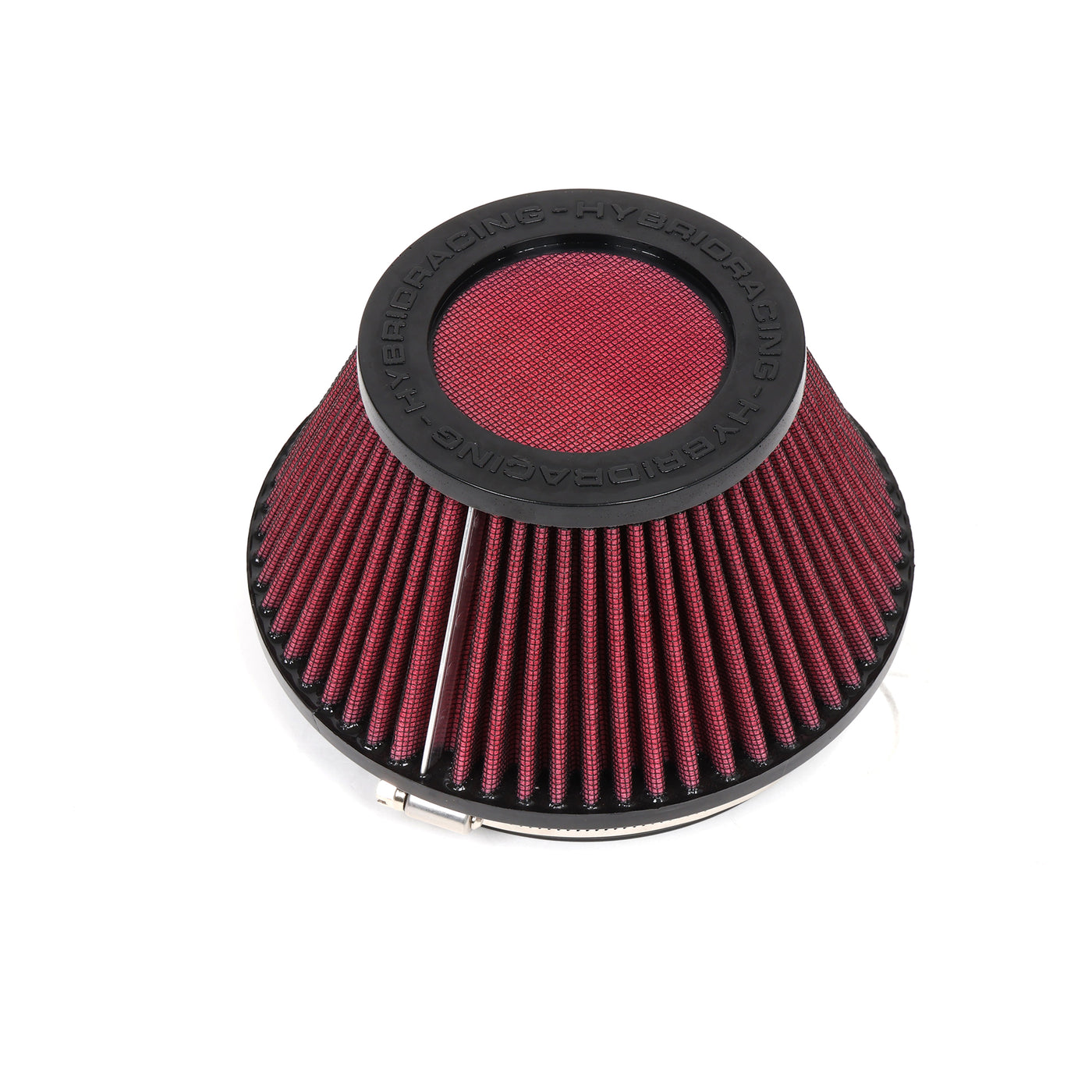

• Red reusable oiled-cotton filter with a flat-top element
• Your choice of 76mm Street or 89mm Race MAF housing

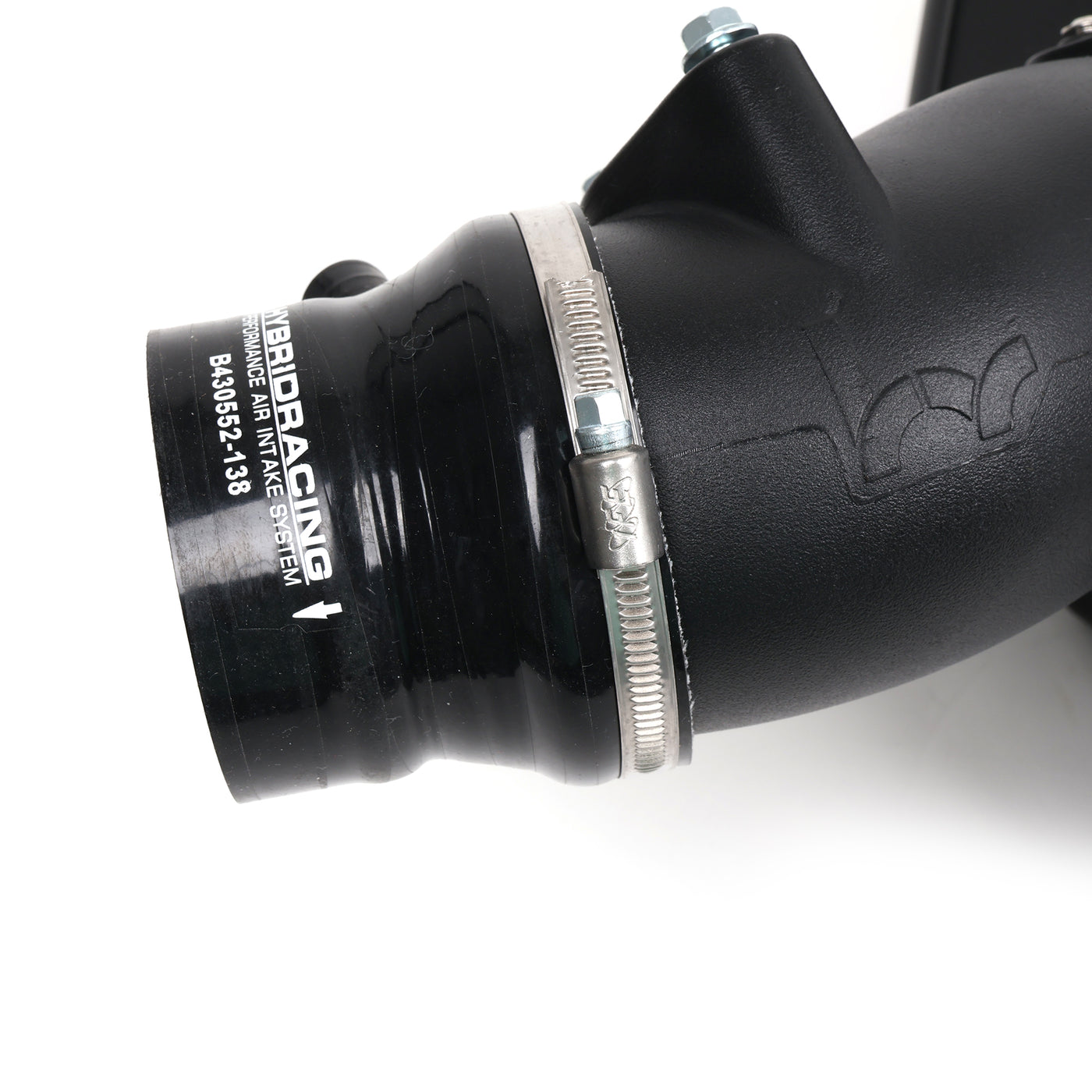

• Silicone coupler that fits the factory turbo inlet pipe
• Two lower outside-air inlet tubes
• Reflective heat shields
• Stainless clamps and mounting hardware
• 2.5mm hex key and installation card
• OEM-style split loom for the factory MAF harness

Your factory MAF sensor and wiring move to the new location without cutting a single wire. The split loom comes long and gets trimmed during install.

Formula Intake Questions

Does the Formula Intake need Hondata FlashPro or a tune?
The 76mm Street runs on the factory ECU. We saw no check engine lights on our test car, and the factory-ECU log showed no knock correction. For the best results, we recommend FlashPro to properly scale the factory MAF sensor for the intake. The 89mm Race inlet requires FlashPro or an equivalent solution that can apply the matching MAF calibration.

When should you choose the 89mm Race?
Choose it when your datalogs show the 76mm Street closing in on the factory MAF sensor's 5.0-volt limit, or when your build plan includes a bigger turbo and a lot more power. You can tune the 89mm Race on a lightly modified FK8, but it gives you more sensor range than that car needs, so grab it when you need the range now or you've got clear plans for those upgrades. Around 400 wheel horsepower, have your tuner start watching MAF voltage. The log, not the power number alone, makes the call.

Can you switch from the 76mm Street to the 89mm Race later?
Yes. Both versions share the same airbox, filter, outside-air feeds, coupler, and factory Honda MAF sensor. Converting later just takes the other MAF housing, its matching velocity stack, and a tuning solution.

Will the Formula Intake throw a check engine light?
We didn't see any on our test car. That said, mods, elevation, weather, and calibration choices all affect how the FK8's ECU responds. For the best results, run FlashPro to properly scale the factory MAF sensor for the intake.
