Diode Dynamics SS3 Dual-Color Wide LED Fog Light Kit - Toyota RAV4 2022-2025
Lease for as low as $/week
Features
- Direct replacement for Toyota RAV4 fog lamps
- Up to 42% brighter than stock fog lamps.
- SAE-compliant road-legal output

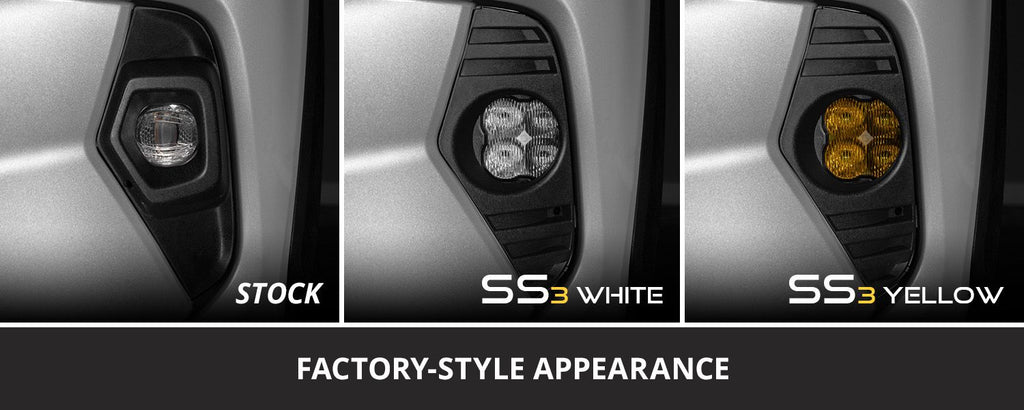

- Includes custom bezel, for factory-style appearance
- Plug and play, no modification needed
- Advanced TIR optics deliver a wide beam pattern with uniform, focused light.
- Durable powdercoated aluminum die-cast
- *Made in USA, backed by a limited lifetime warranty.
Overview

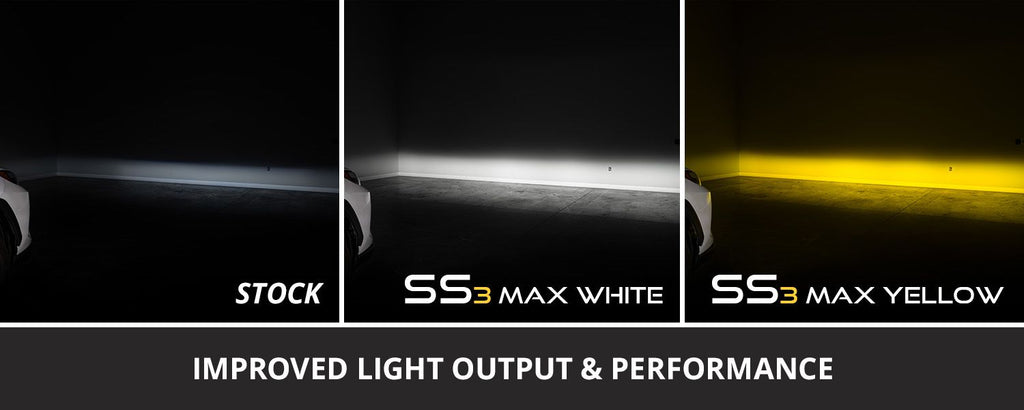

Overview. Upgrade the fog lights on your Toyota RAV4 with our SS3 Fog Light Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included custom bezel, the SS3 Fog Kit adds a larger, high-output fog light, providing wider coverage and significantly more usable light output than stock
Plug and Play. The SS3 Fog Light Kit has been engineered to fit your Toyota RAV4 perfectly and can be installed in minutes. Simply remove the factory fog light assembly and bezel, snap the new bezel into place, and attach your new SS3 Fog Light to the bezel. The included adapters plug directly into the factory fog light connector, making installation a breeze.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

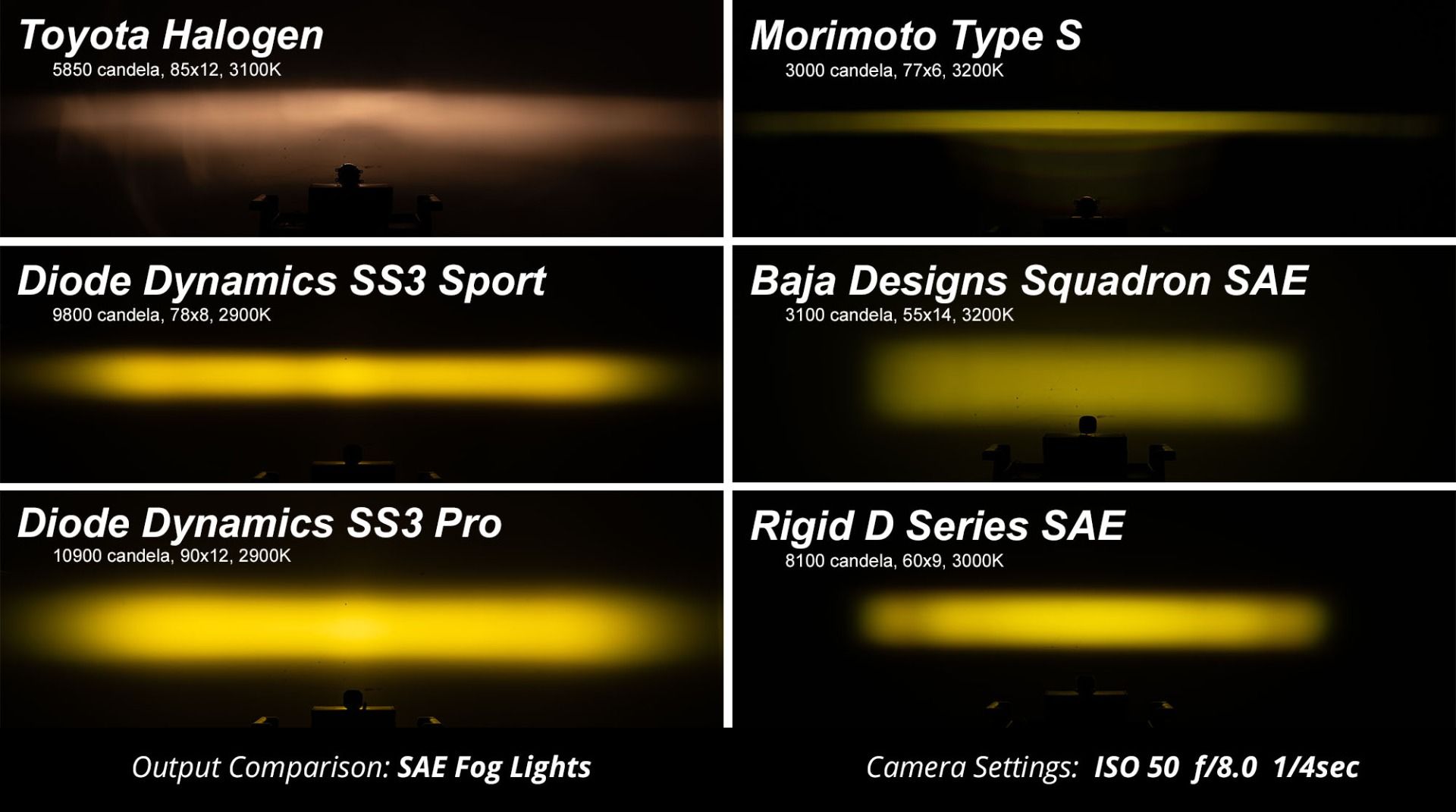

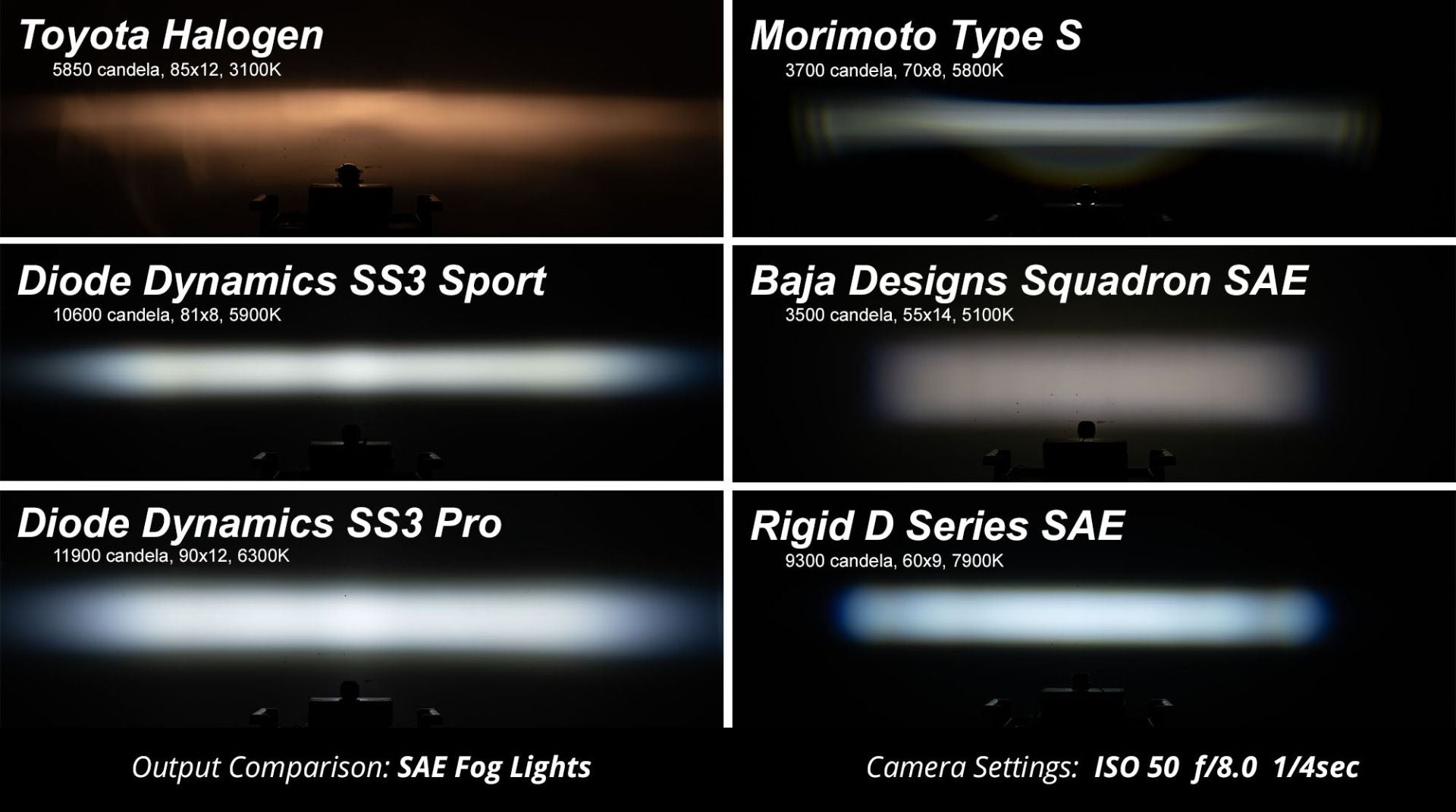

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose cool white, selective yellow, or Dual-Color output to match your needs and the conditions.
When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

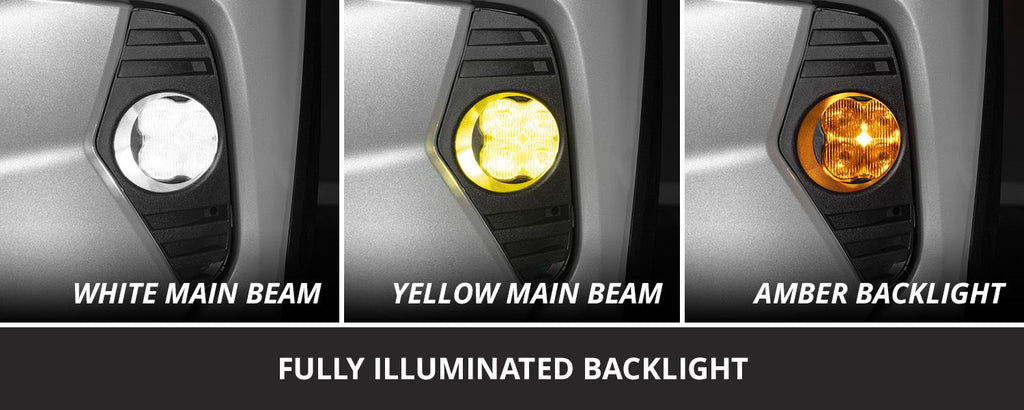

Backlight Functionality. The Stage Series 3" LED Pod features a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

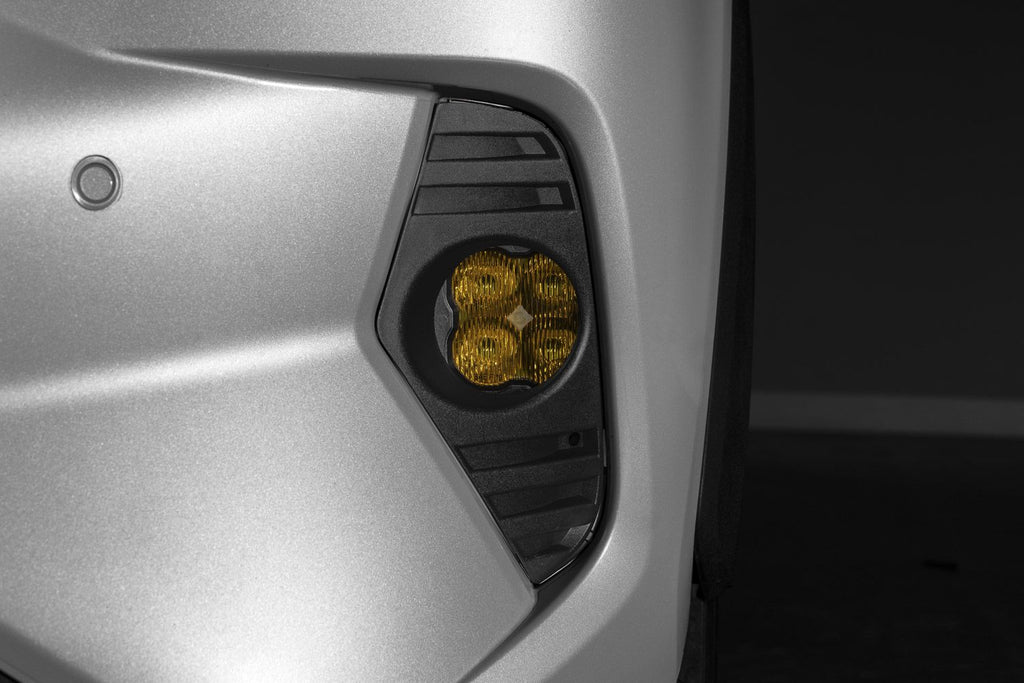

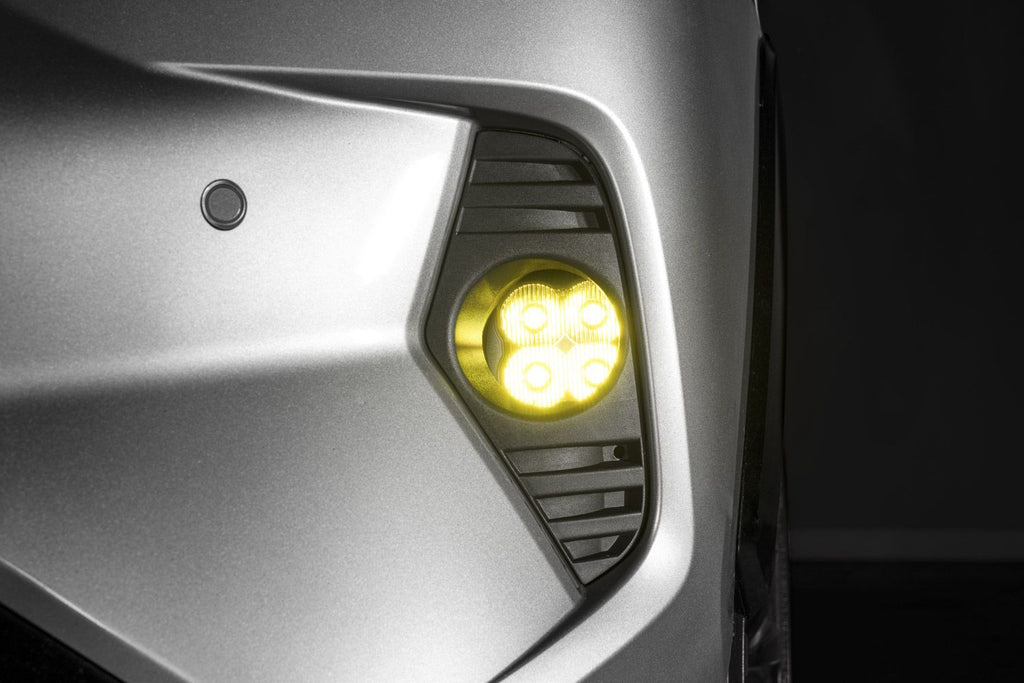

White, Yellow, or Dual-Color. Choose 6000K cool white, 3000K selective yellow, or the Dual-Color option. White provides a crisp, modern appearance, while selective yellow improves contrast in rain, snow, fog, and dust. The Dual-Color option combines both colors in one lamp and lets you select the output that best fits the conditions.
SmartSelect Dual-Color Control. The Dual-Color option lets you switch the main beam between 6000K cool white and 3000K selective yellow using the factory fog light switch, with no extra switch required. To enter programming mode, cycle the fog lights On and Off three times, leaving each state active for at least half a second and no more than five seconds. The lamps will cycle through the available colors twice. Leave the lamps on for at least five seconds when your preferred color is displayed to save it. If no selection is made after two full cycles, the lamps return to white as the factory setting.
Consistent Fog Pattern. On the Dual-Color option, both white and yellow use the same focused SAE fog pattern, so changing color does not change the beam shape or aiming.
Multiple Power Levels. Stage Series LED pods are available in several power levels to suit your needs. Sport provides dependable performance and is a great entry-level upgrade. Dual-Color delivers output between Sport and Pro, with selectable white and yellow SAE fog output in a single lamp. Pro steps up the intensity for greater visibility, while Max delivers the highest output available for those seeking maximum performance.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it's a Toyota or anything else, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

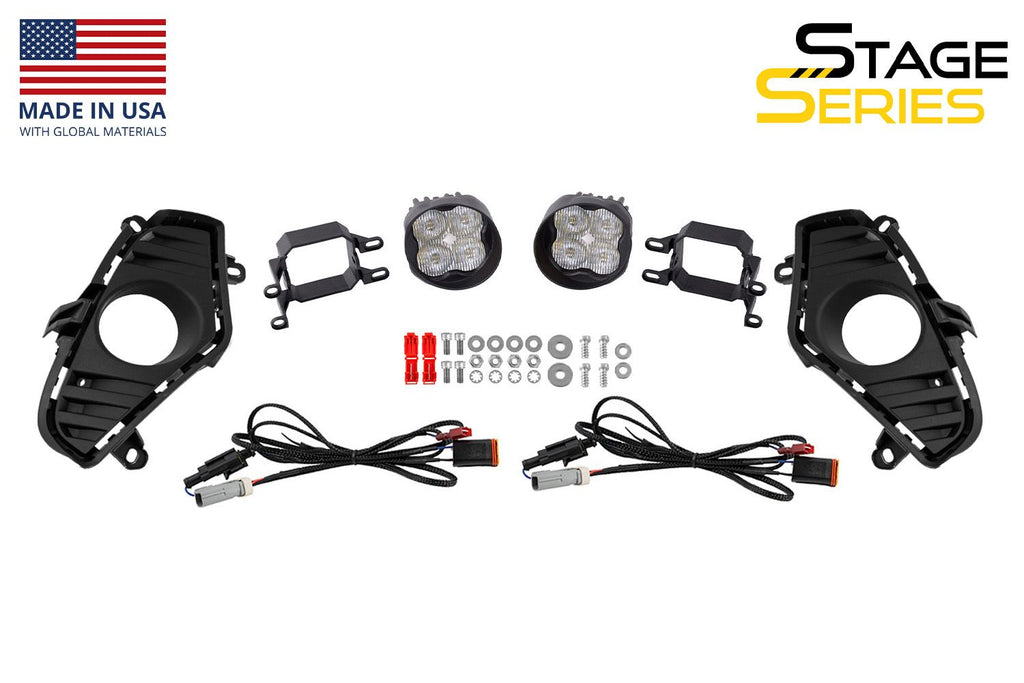

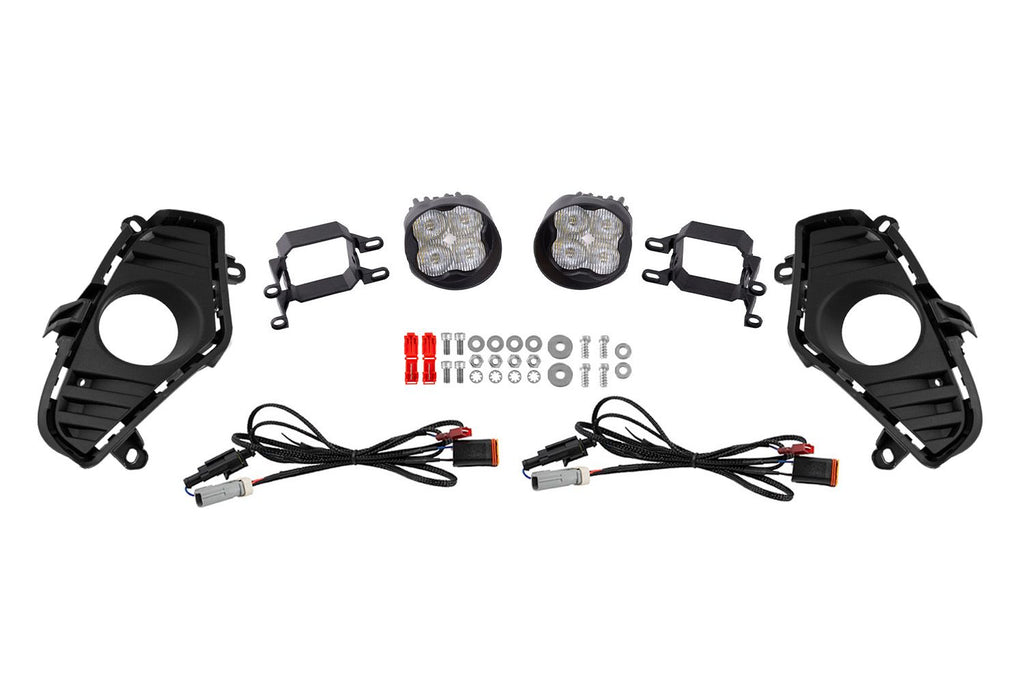

- Two (2) SS3 LED Pods
- Two (2) Type B brackets
- Two (2) OEM-Style Bezels
- Two (2) DJ70 4-pin DT backlight tap wires
- Mounting hardware
- Mounting guide
Fitment
NOTE: This Kit is not compatible with TRD Off-Road/Adventure trim levels. This kit is a replacement for OEM fog lights.
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|
| Fog White Sport | 10,600 cd | 106 lux | 1,520 lm | 2,262 lm | 6000K White |
| Fog White Pro | 11,900 cd | 119 lux | 3,000 lm | 5,796 lm | 6000K White |
| Fog White Max | 18,000 cd | 180 lux | 3,500 lm | 7,920 lm | 6000K White |
| Fog Yellow Sport | 9,050 cd | 91 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
| Fog Yellow Pro | 10,900 cd | 109 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
| Fog Yellow Max | 12,500 cd | 125 lux | 3,500 lm | 7,920 lm | 3000K Yellow |
| Fog Dual Color White | 10,400 cd | 104 lux | 1,050 lm | 2,640 lm | 6000K White |
| Fog Dual Color Yellow | 8,910 cd | 89 lux | 860 lm | 2,640 lm | 3000K Yellow |
