Diode Dynamics Elite Series Dual-Color Add-On Fog Lamp Kit - Toyota RAV4 2019-2025

Features

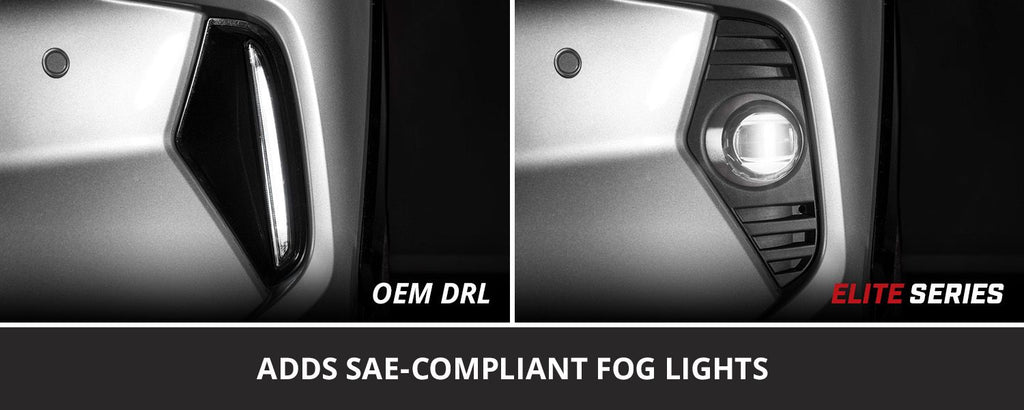

• Adds SAE-compliant fog lights to the 2019-2025 Toyota RAV4.
• Includes custom bezel, for factory-style appearance and fitment.
• Custom harness allows for factory-like operation.
• Distinctive integrated amber backlight activates with parking lights.
• Made in USA, backed by an 8-year warranty.

Overview

If your RAV4 didn't come with fog lights from the factory, you're missing critical lighting in inclement weather, like fog, snow, rain, or dust. Headlights are not designed to illuminate the road directly in front of the vehicle, which is where dedicated fog lights make the biggest difference.

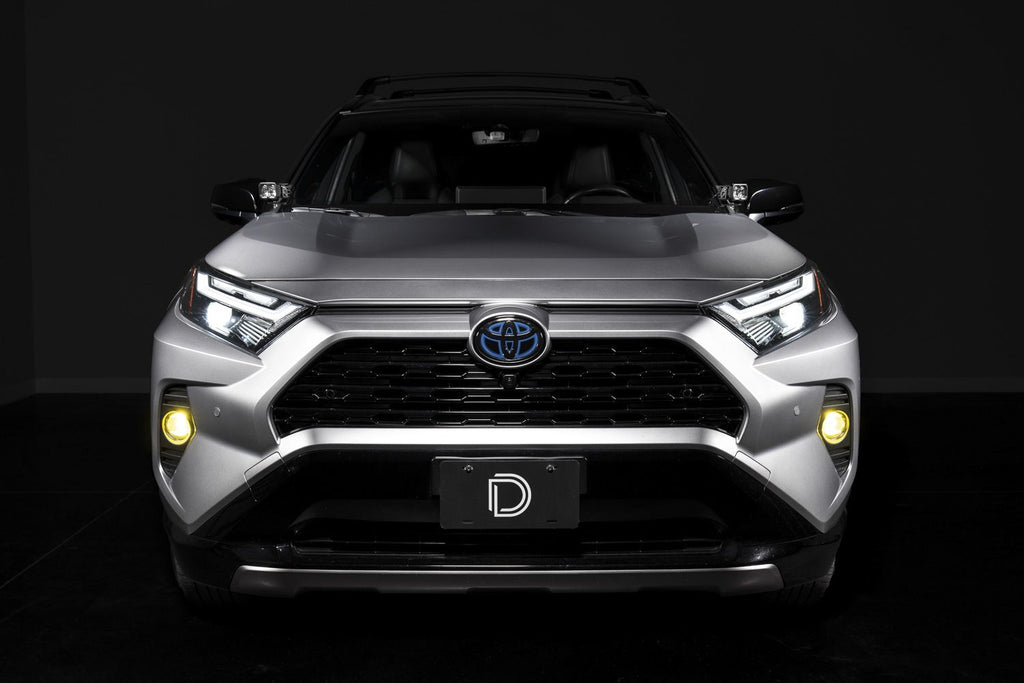

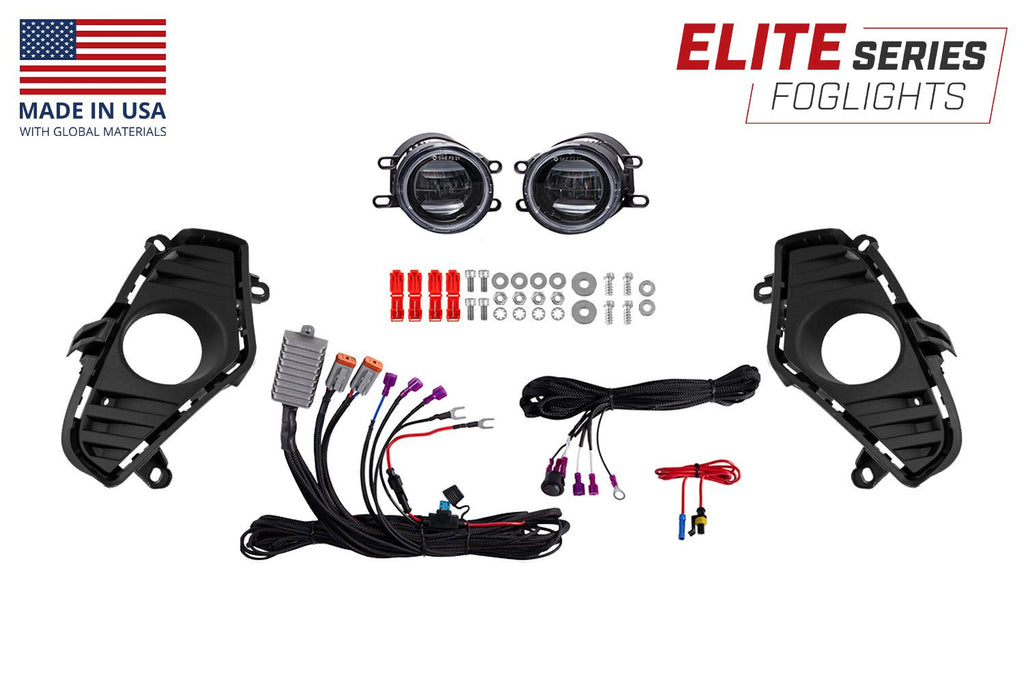

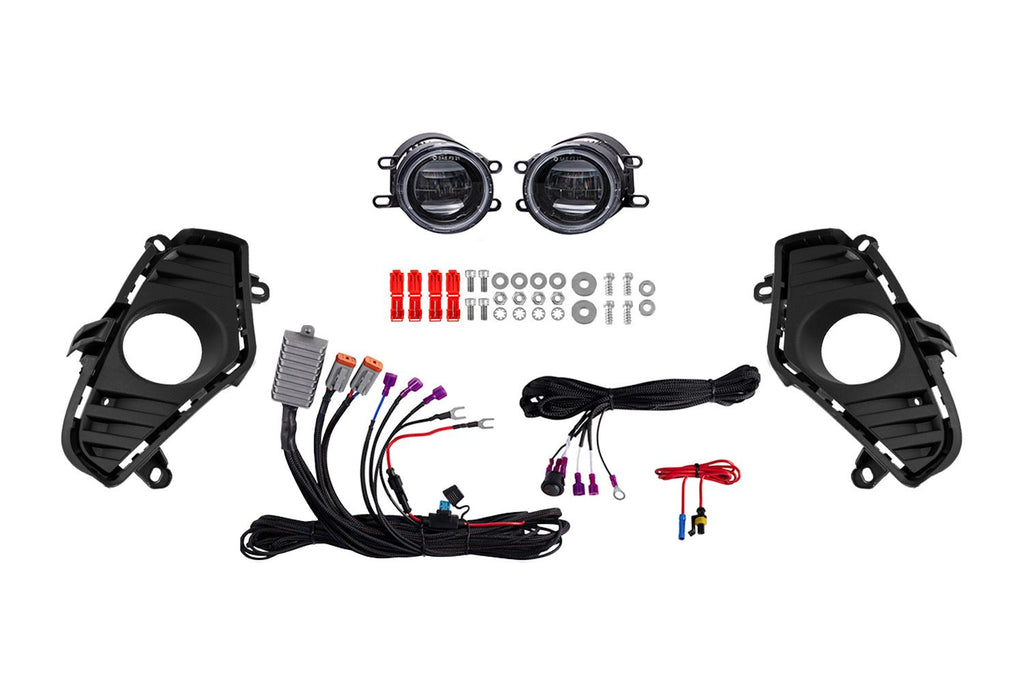

Our Elite Series Add-On Fog Lamp Kit for the 2019-2025 Toyota RAV4 adds that dedicated foreground lighting the RAV4 is missing. This complete kit allows you to mount two SAE-compliant fog lights in the factory bumper while maintaining a clean, OEM-style appearance with included, vehicle-specific bezels.

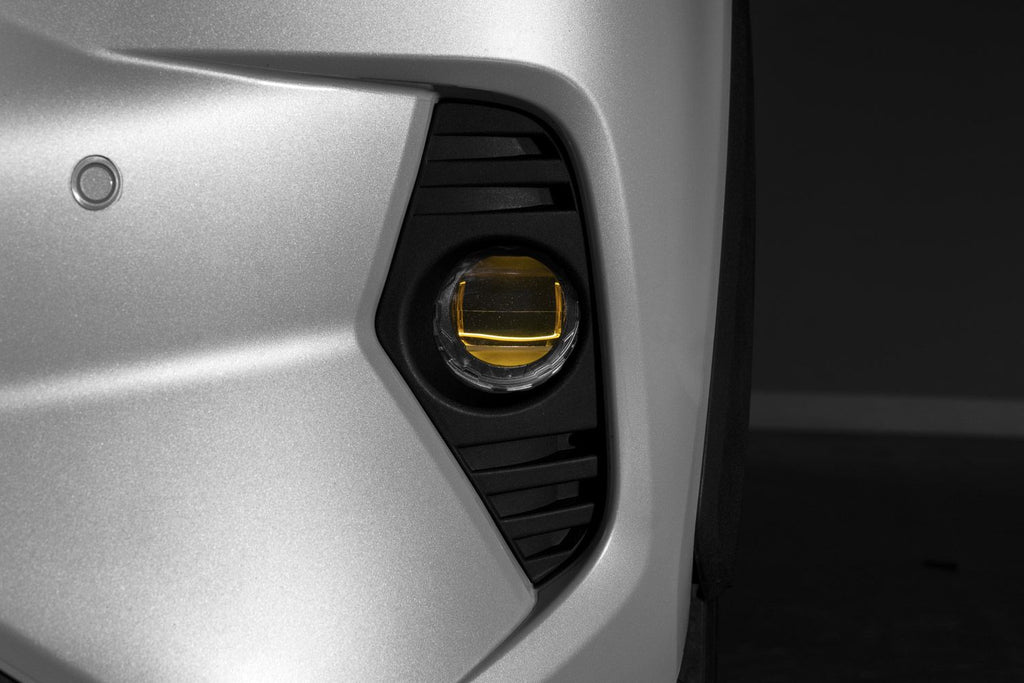

OEM-Style Appearance. The included bezels simply snap into place, replacing the OE bezel without cutting or permanent modification. Their shape and finish complement the factory styling, giving your RAV4 a factory-equipped look while adding functional lighting. If you are looking for a more aggressive lighting option, check out our SS3 Add-On LED Fog Lamp Kit!

Factory-like Operation. Unlike other basic harnesses on the market, the Add-On Fog Harness included in this kit allows the fog lights to operate automatically, just like you'd expect from the factory. By using the included custom-designed harness, the backlight will come on with the parking lights, and the main beam will operate just as a factory fog light, turning on with the low beams and turning off with the high beams. This is much more convenient than manually flipping a switch on every time you want to use them!

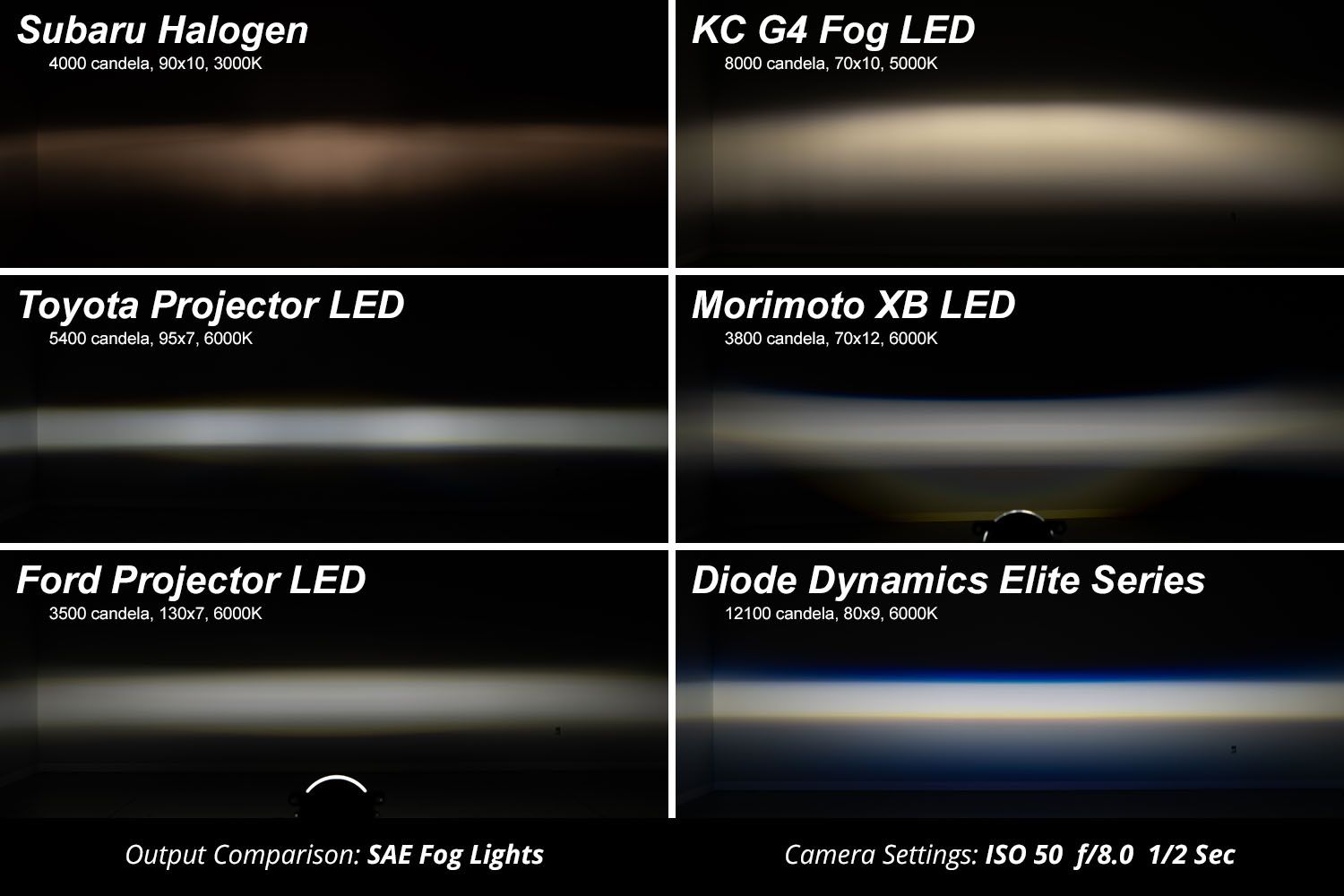

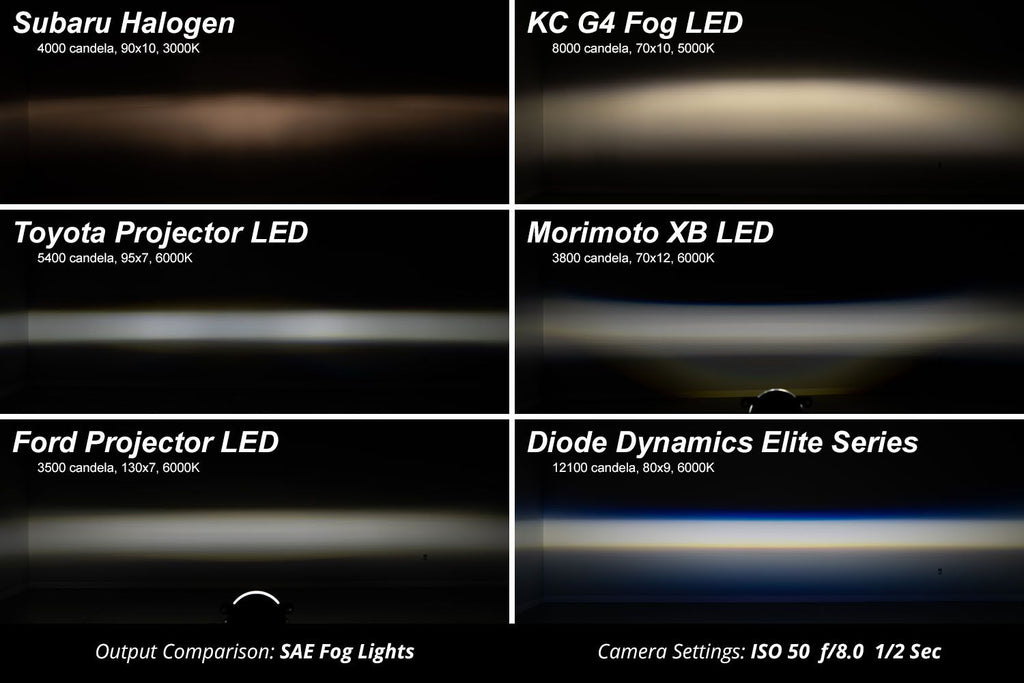

Output that Outperforms. The Elite Series Fog Lamp is built around a highly-engineered single-piece toroidal lens. This optic was carefully designed using advanced optical simulation software to produce an asymmetric light pattern that is wider than any other aftermarket fog lamp on the market, with an 80-degree spread of highly intense light. Even with this extremely wide band of light, the pattern is extremely smooth throughout, with an extremely sharp cutoff to avoid glare to other drivers, including a BMW-style “color flicker” at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

White, Yellow, or Dual-Color. Choose 6000K cool white, 3000K selective yellow, or the Dual-Color option. White provides a crisp, modern appearance, while selective yellow improves contrast in rain, snow, fog, and dust. The Dual-Color option combines both colors in one lamp and lets you select the output that best fits the conditions.

SmartSelect Dual-Color Control. The Dual-Color option lets you switch the main beam between 6000K cool white and 3000K selective yellow using the factory fog light switch, with no extra switch required. To enter programming mode, cycle the fog lights On and Off three times, leaving each state active for at least half a second and no more than five seconds. The lamps will cycle through the available colors twice. Leave the lamps on for at least five seconds when your preferred color is displayed to save it. If no selection is made after two full cycles, the lamps return to white as the factory setting.

Consistent Fog Pattern. On the Dual-Color option, both white and yellow use the same focused SAE fog pattern, so changing color does not change the beam shape or aiming.

The white is a 6000K color temperature, which is a true cool white output. This will perfectly match other LEDs on your vehicle, such as DRLs or running lights. The white option also offers a premium BMW-style color band at the very top of the beam pattern.

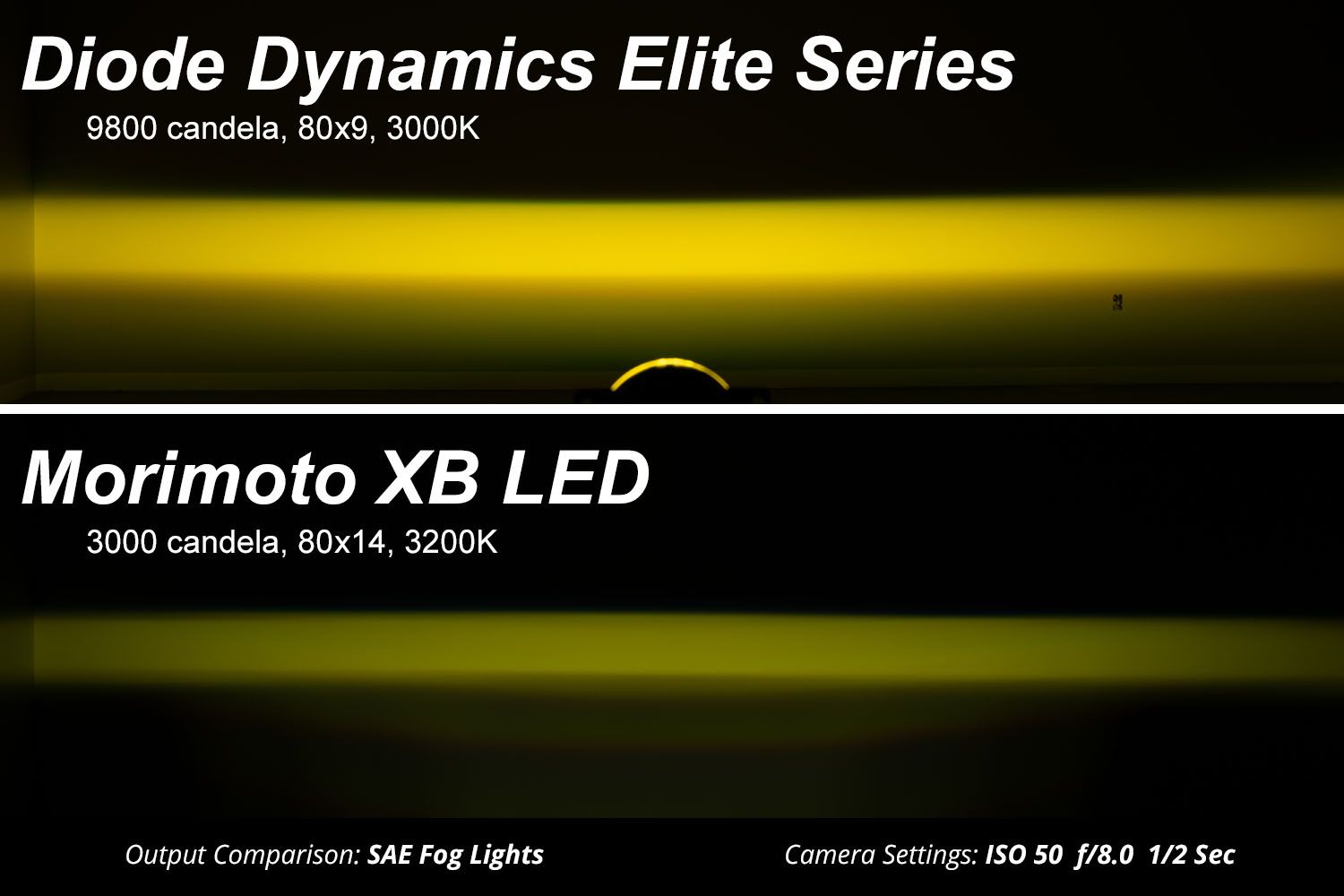

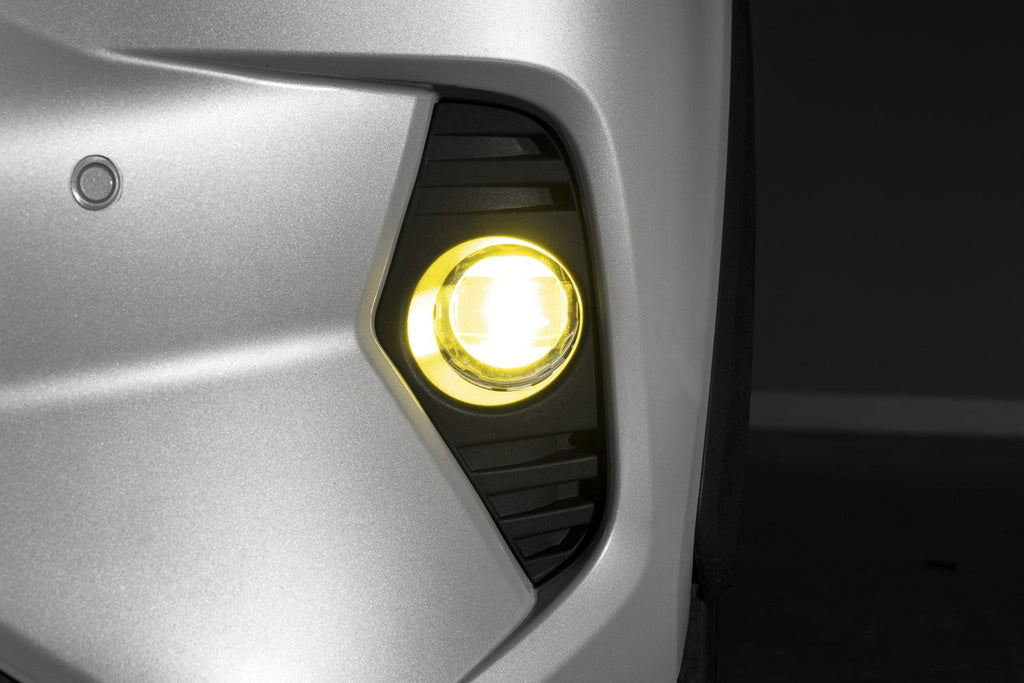

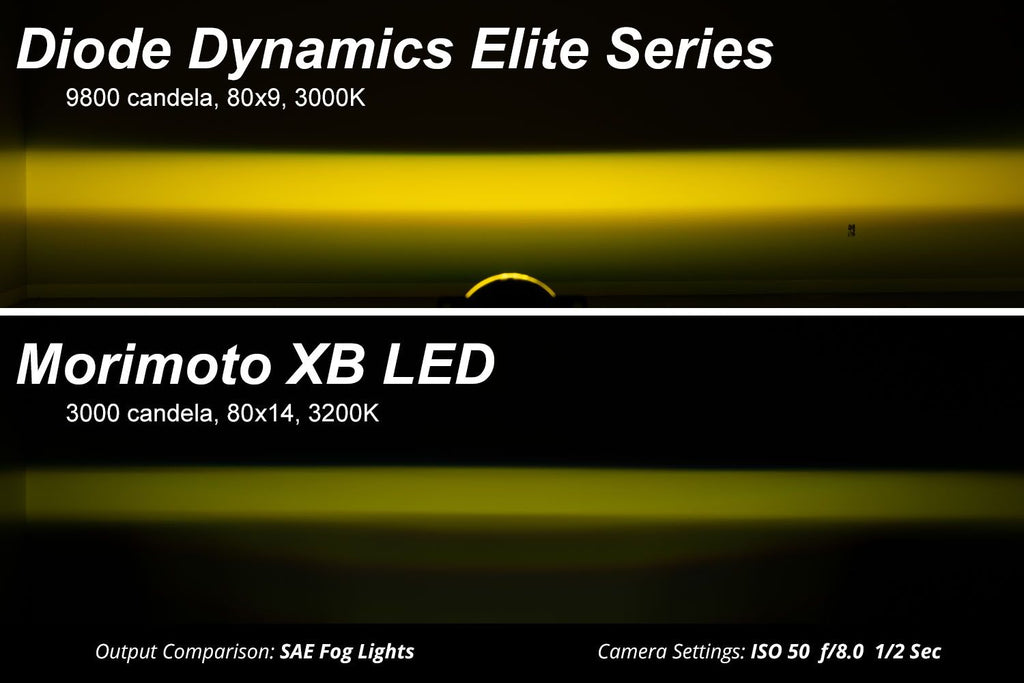

The selective yellow option is 3000K in color temperature, which is great for high contrast in inclement weather, or in providing a distinctive look on the road. The yellow lamp consists of a yellow multi-die LED emitter paired with a yellow-tinted lens, to provide unmatched output and optical efficiency, even with the intense yellow output.

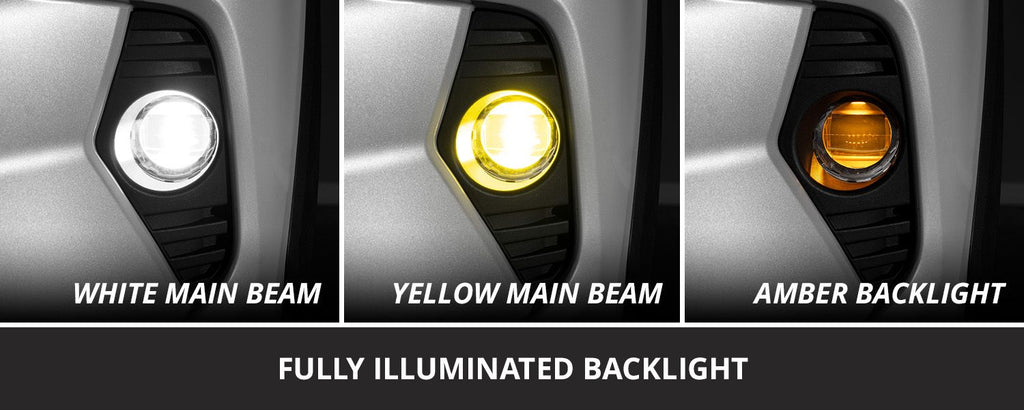

Backlight Functionality. All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs, intended to match other position, sidemarker, or corner lights on your vehicle. Check local laws and regulations for acceptable use.

Bolt-On Fitment. The brackets included with the lamps bolt directly to the back of the provided bezels, while our add-on foglight wiring harness is included to connect the fog lights to your factory lighting functions.

Assembled with Quality - in the USA. Elite Series Fog Lamps are assembled in the USA using OEM-grade materials, including a precision aluminum casting, UV-coated outer lens, copper-core circuit board, and multi-die automotive emitters. After being assembled by Diode Dynamics in St. Louis, Missouri, they are robotically sealed with urethane epoxy for long-lasting protection against moisture, and packaged in form-fit foam for safe transportation. No expense has been spared, from materials to assembly, right here in America.

Proven Reliability - Backed for 8 Years. Like our popular Stage Series lineup, Elite Series LED lamps have been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components on your vehicle. With integrated moisture-proof vents, the lamps can “breath” with changes in temperature, maintaining a strong seal over time. And with built-in circuit protection for voltage spikes and reverse polarity, these lights will keep working for years. They are backed by an industry-leading 8-year limited warranty.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
