Diode Dynamics SS3 Dual-Color Wide Add-On Fog Lamp Kit - Toyota RAV4 2019-2022
Lease for as low as $/week
Features

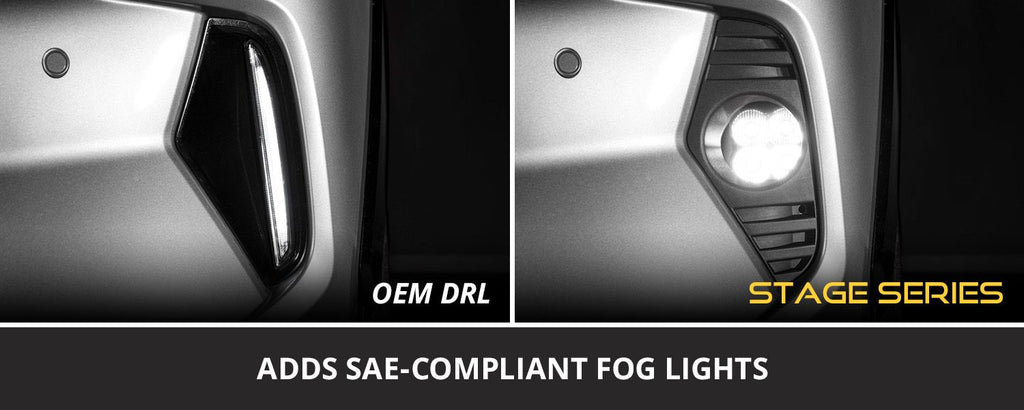

- Adds SAE-compliant fog lights to the 2019-2025 Toyota RAV4.
- Includes custom bezel, for factory-style appearance and fitment.
- Custom harness allows for factory-like operation.
- Distinctive integrated amber backlight activates with parking lights.
- *Made in USA, backed by a limited lifetime warranty.
Overview

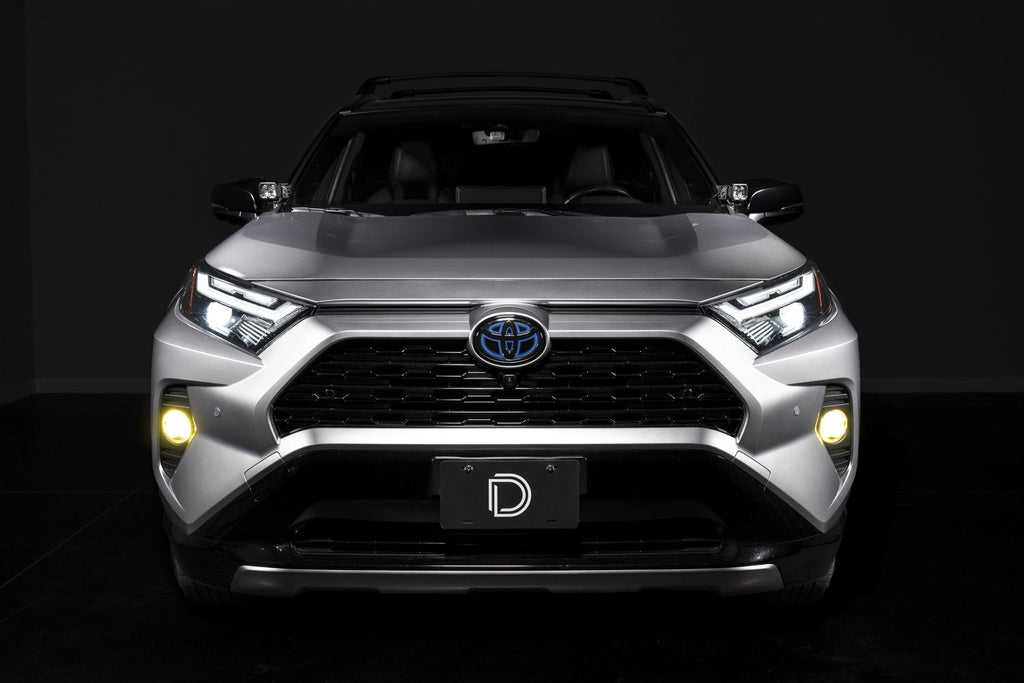

While the 2019-2025 Toyota RAV4 does not include factory fog lights on all trim levels, there is still a need for light directly in front of the vehicle to improve visibility in foggy, dusty, snowy, or rainy conditions. Headlights are not designed to illuminate the road surface directly in front of the vehicle, where dedicated fog lights make a difference. Introducing our Stage Series Add-On Fog Lamp Kit for the 2019-2025 Toyota RAV4. This kit allows you to mount two SAE-compliant fog light pods in the factory bumper while preserving an OEM-style appearance with included, vehicle-specific bezels.
Aggressive Appearance. The included bezels install cleanly into the factory RAV4 bumper with no cutting or permanent modification required. They maintain the factory look while the high-output SS3 LED pods provide much-needed light output in front of the vehicle and a more aggressive appearance. Integrated amber backlighting activates with the parking lights, adding a distinctive accent to the front of the vehicle. Whether you are driving in challenging weather or on unlit roads, this add-on fog light kit delivers enhanced visibility with a clean, factory-like fit. If you prefer a more subtle OEM-style upgrade, check out our Elite Series Add-On LED Fog Lamp Kit!
Factory-like Operation. Unlike other basic harnesses on the market, the Add-On Fog Harness included in this kit allows the fog lights to operate automatically, just like you'd expect from the factory. By using our included harness, the backlight will come on with the parking lights, and the main beam will operate just as a factory fog light, turning on with the low beams and turning off with the high beams. This is much more convenient than manually flipping a switch on every time you want to use them!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose cool white, selective yellow, or Dual-Color output to match your needs and the conditions.
When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

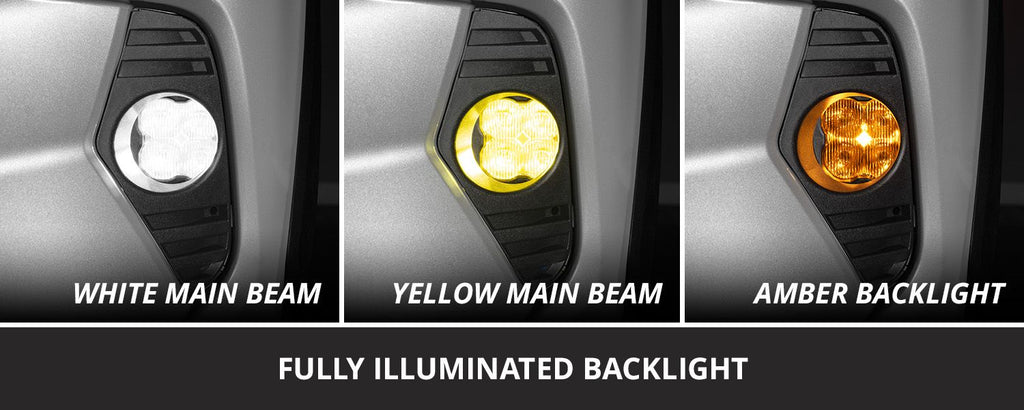

Backlight Functionality. The Stage Series 3" LED Pod features a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

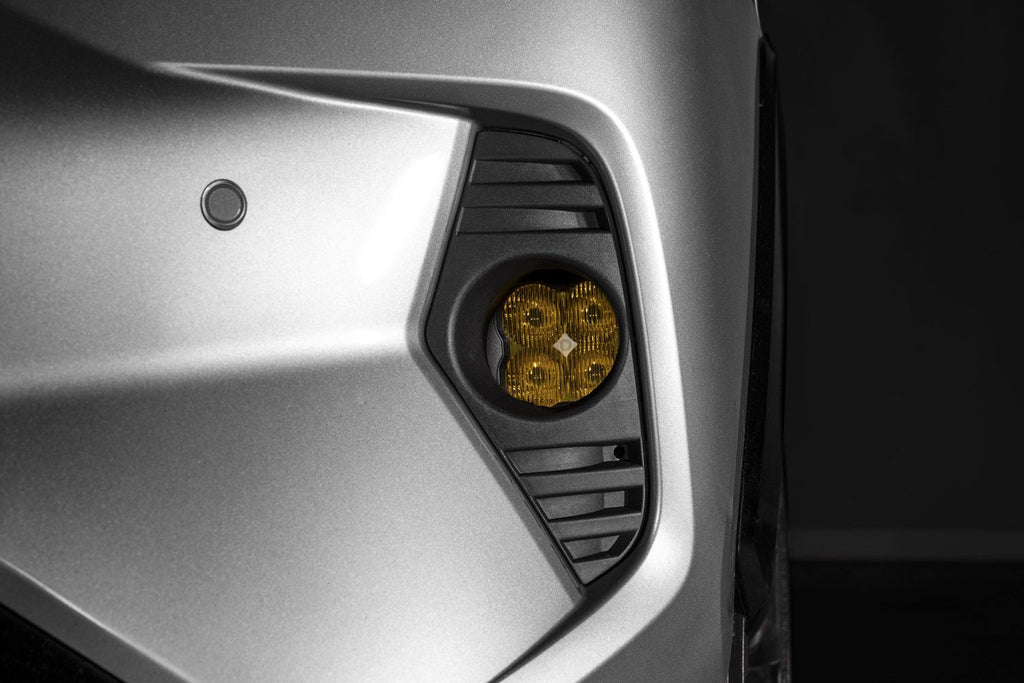

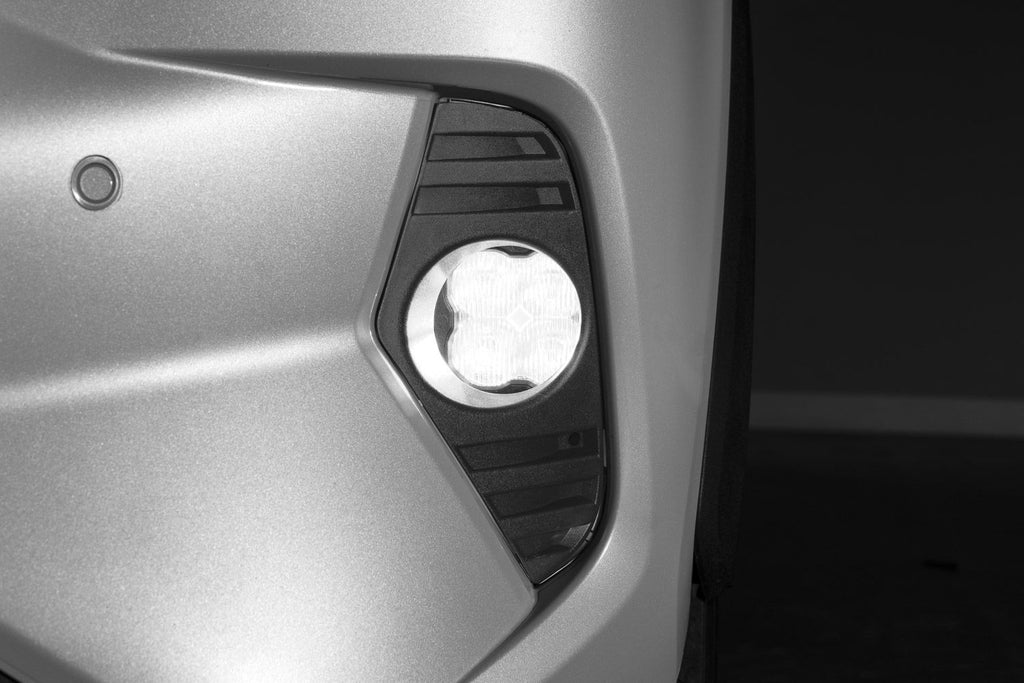

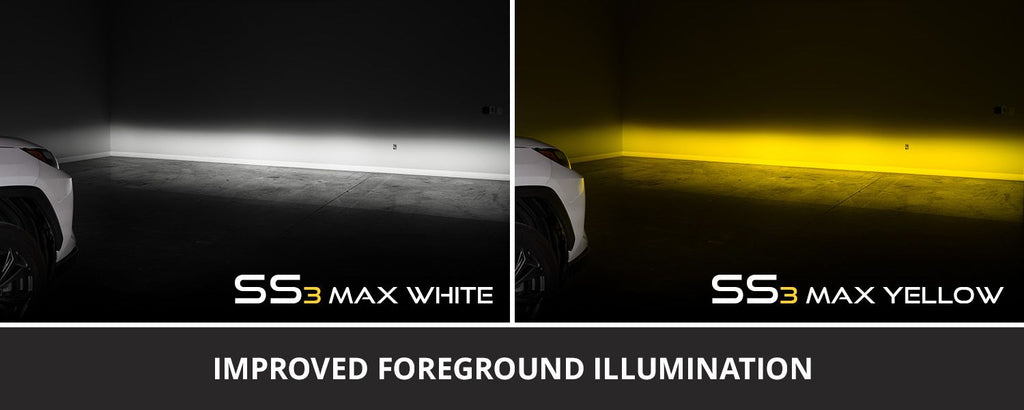

White, Yellow, or Dual-Color. Choose 6000K cool white, 3000K selective yellow, or the Dual-Color option. White provides a crisp, modern appearance, while selective yellow improves contrast in rain, snow, fog, and dust. The Dual-Color option combines both colors in one lamp and lets you select the output that best fits the conditions.
SmartSelect Dual-Color Control. The Dual-Color option lets you switch the main beam between 6000K cool white and 3000K selective yellow using the factory fog light switch, with no extra switch required. To enter programming mode, cycle the fog lights On and Off three times, leaving each state active for at least half a second and no more than five seconds. The lamps will cycle through the available colors twice. Leave the lamps on for at least five seconds when your preferred color is displayed to save it. If no selection is made after two full cycles, the lamps return to white as the factory setting.
Consistent Fog Pattern. On the Dual-Color option, both white and yellow use the same focused SAE fog pattern, so changing color does not change the beam shape or aiming.
Multiple Power Levels. Stage Series LED pods are available in several power levels to suit your needs. Sport provides dependable performance and is a great entry-level upgrade. Dual-Color delivers output between Sport and Pro, with selectable white and yellow SAE fog output in a single lamp. Pro steps up the intensity for greater visibility, while Max delivers the highest output available for those seeking maximum performance.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it's a Toyota or anything else, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

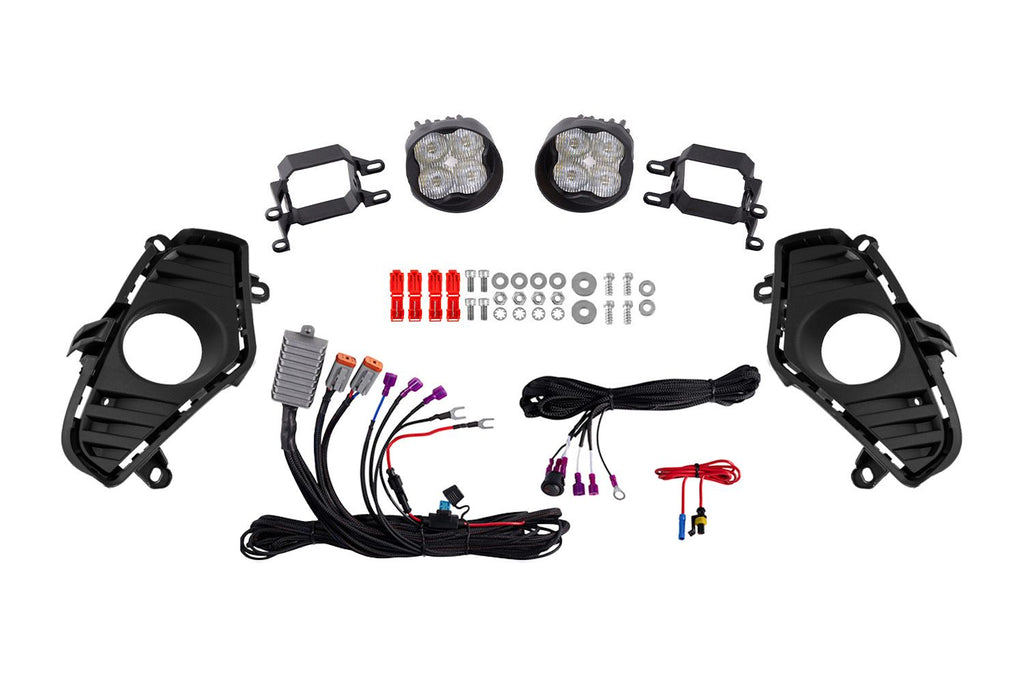

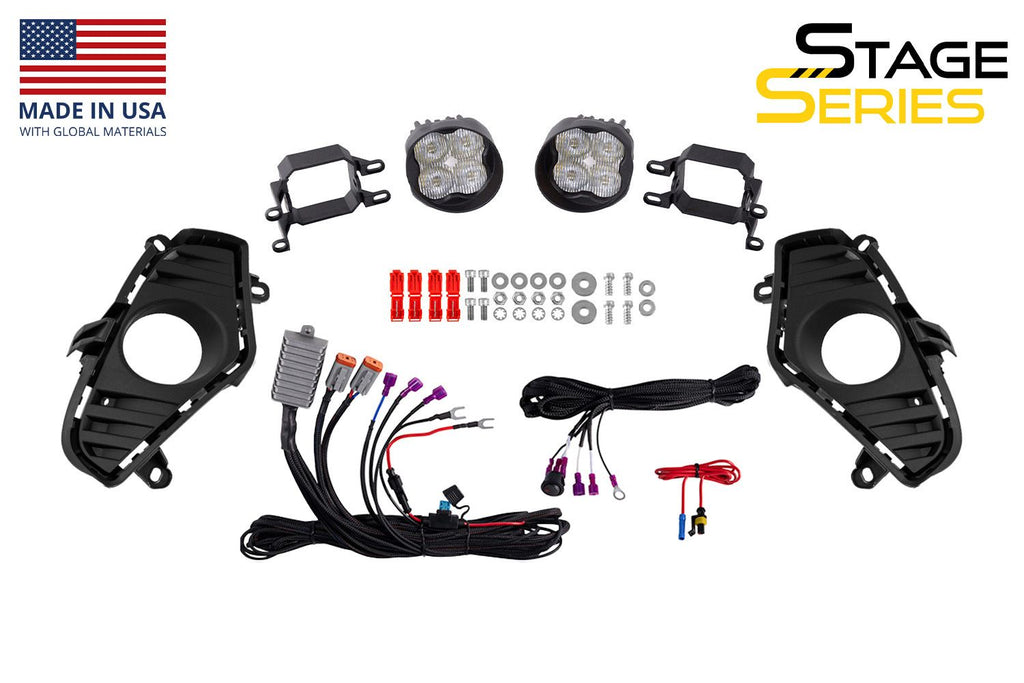

- Two (2) SS3 LED Pods
- Two (2) Type B brackets
- Two (2) OEM-Style Bezels
- One (1) Add-on Fog Light Harness
- Mounting hardware
- Mounting guide
Fitment
NOTE: This kit is not compatible with TRD Off-Road/Adventure trim levels, and was designed for vehicles without OEM fog lights. If your vehicle is equipped with an LED accent light from the factory, this will be disabled.
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|

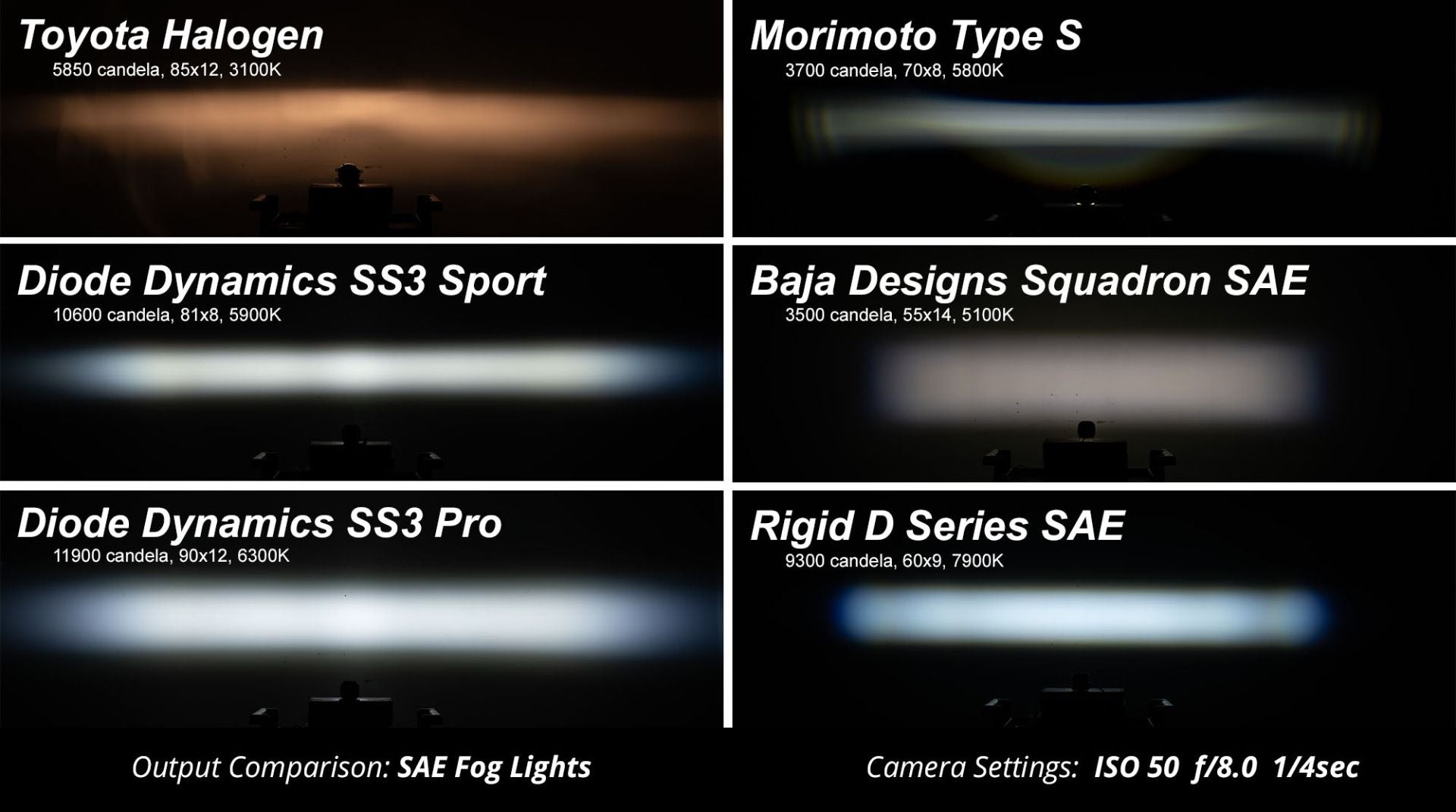

| Fog White Sport | 10,600 cd | 106 lux | 1,520 lm | 2,262 lm | 6000K White |
| Fog White Pro | 11,900 cd | 119 lux | 3,000 lm | 5,796 lm | 6000K White |
| Fog White Max | 18,000 cd | 180 lux | 3,500 lm | 7,920 lm | 6000K White |

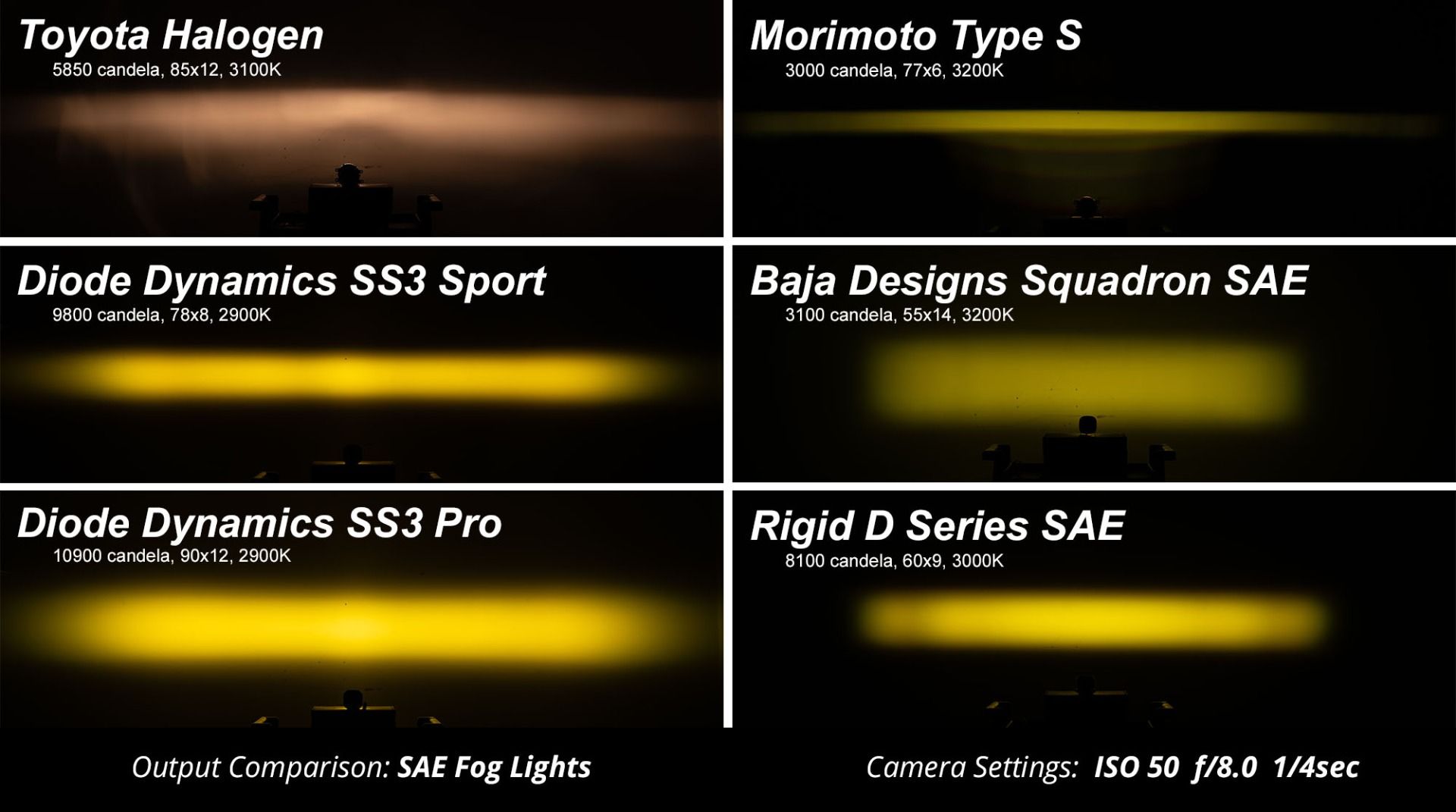

| Fog Yellow Sport | 9,050 cd | 91 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
| Fog Yellow Pro | 10,900 cd | 109 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
| Fog Yellow Max | 12,500 cd | 125 lux | 3,500 lm | 7,920 lm | 3000K Yellow |
| Fog Dual Color White | 10,400 cd | 104 lux | 1,050 lm | 2,640 lm | 6000K White |
| Fog Dual Color Yellow | 8,910 cd | 89 lux | 860 lm | 2,640 lm | 3000K Yellow |
