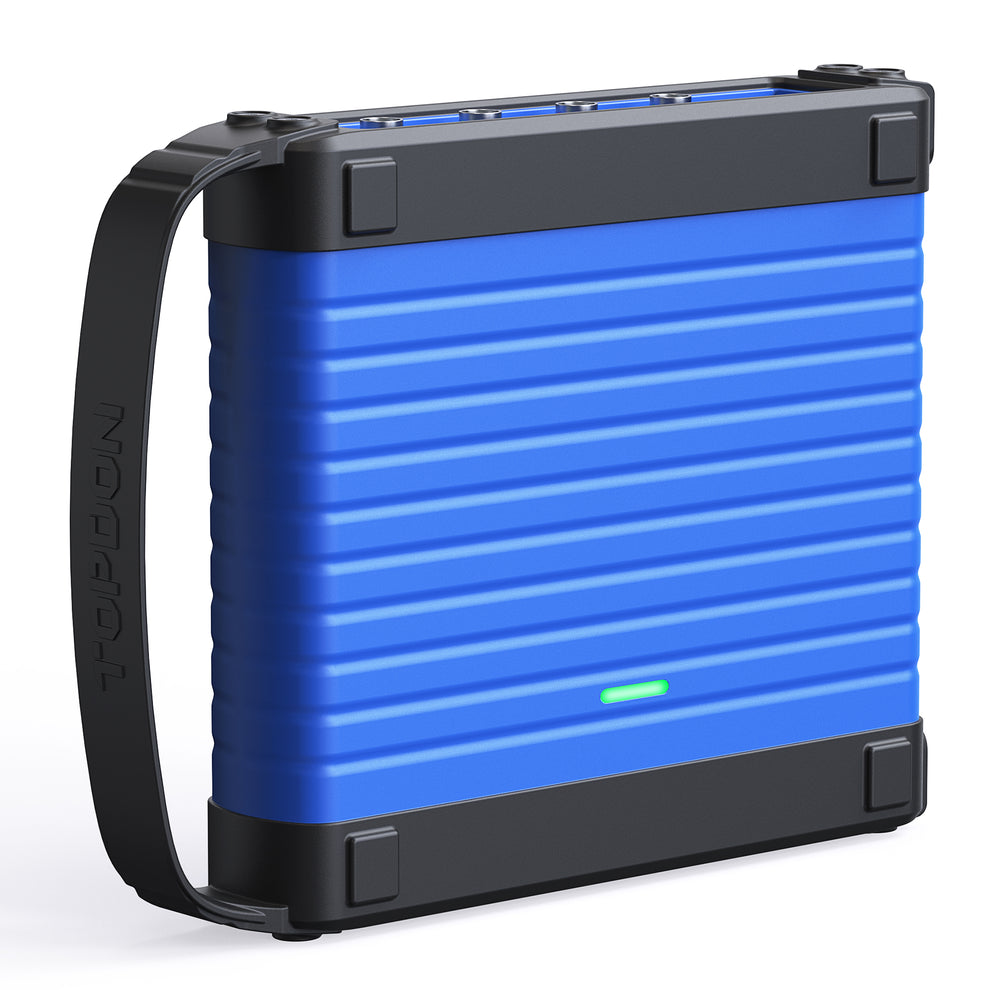

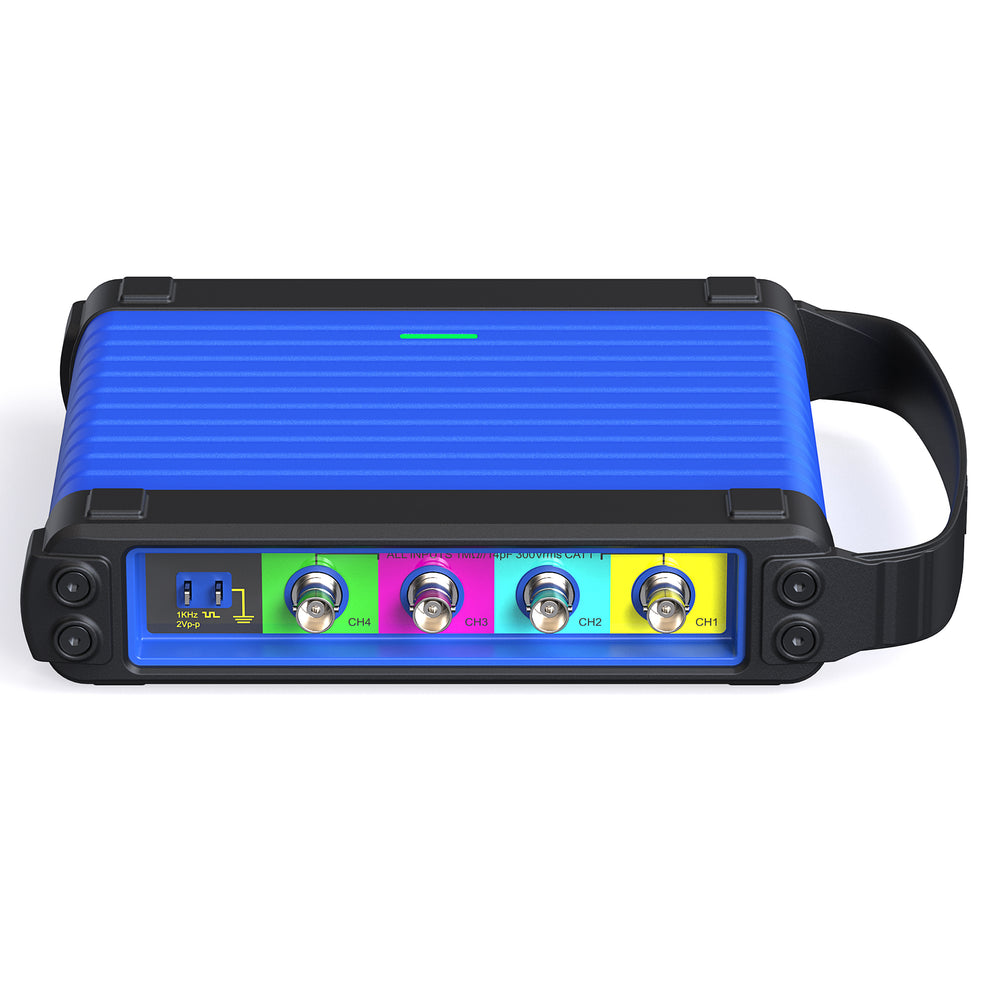

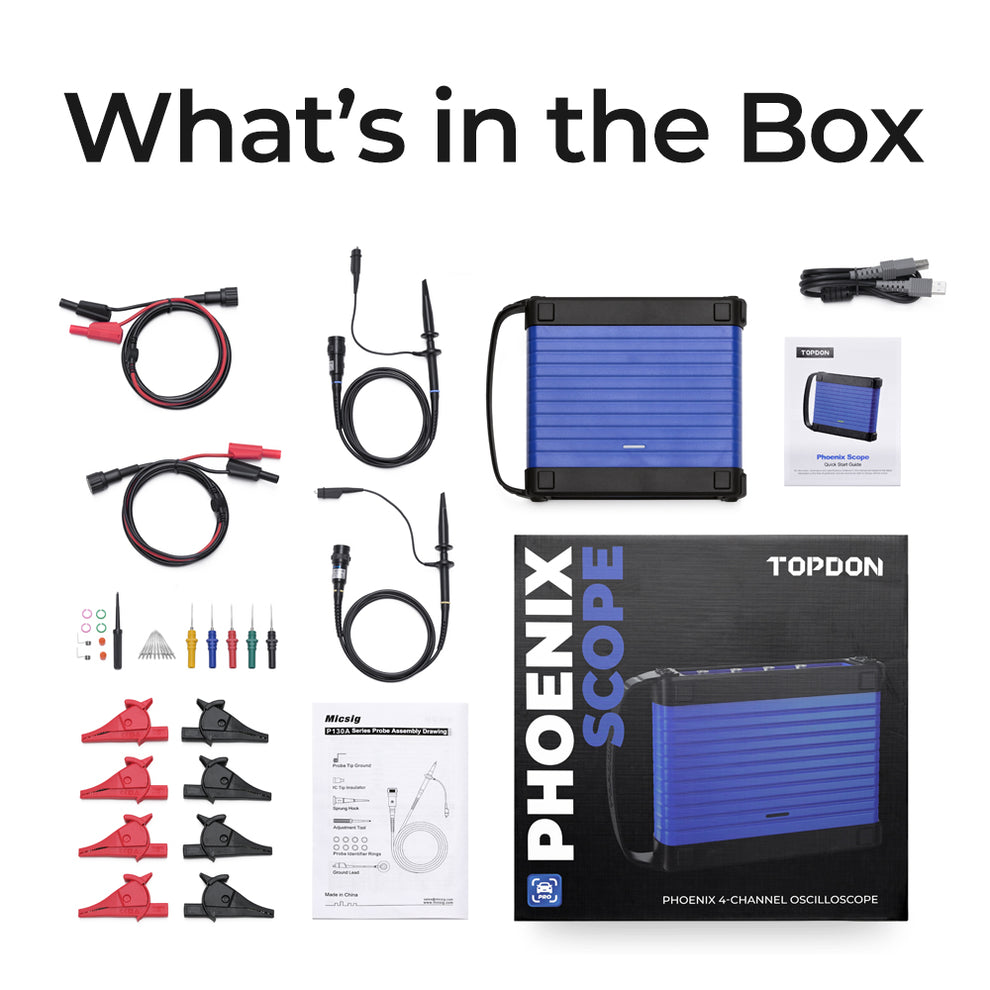

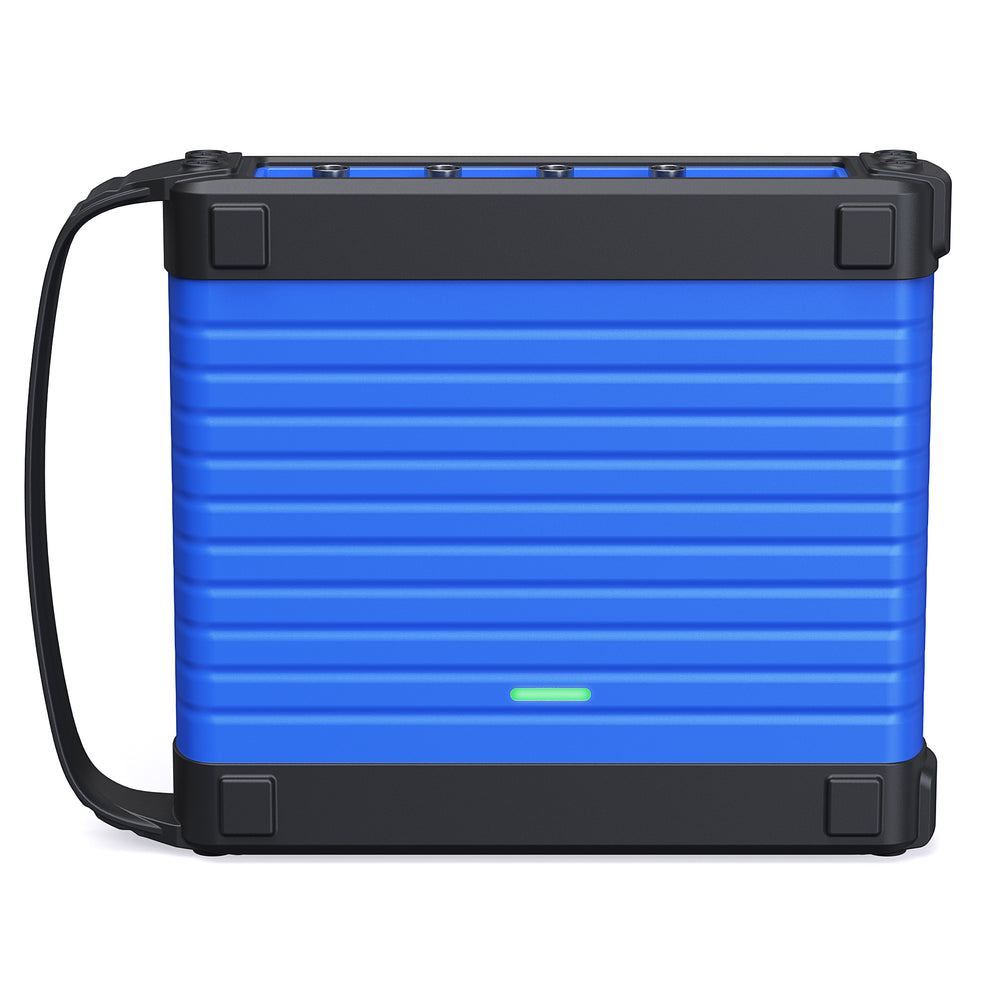

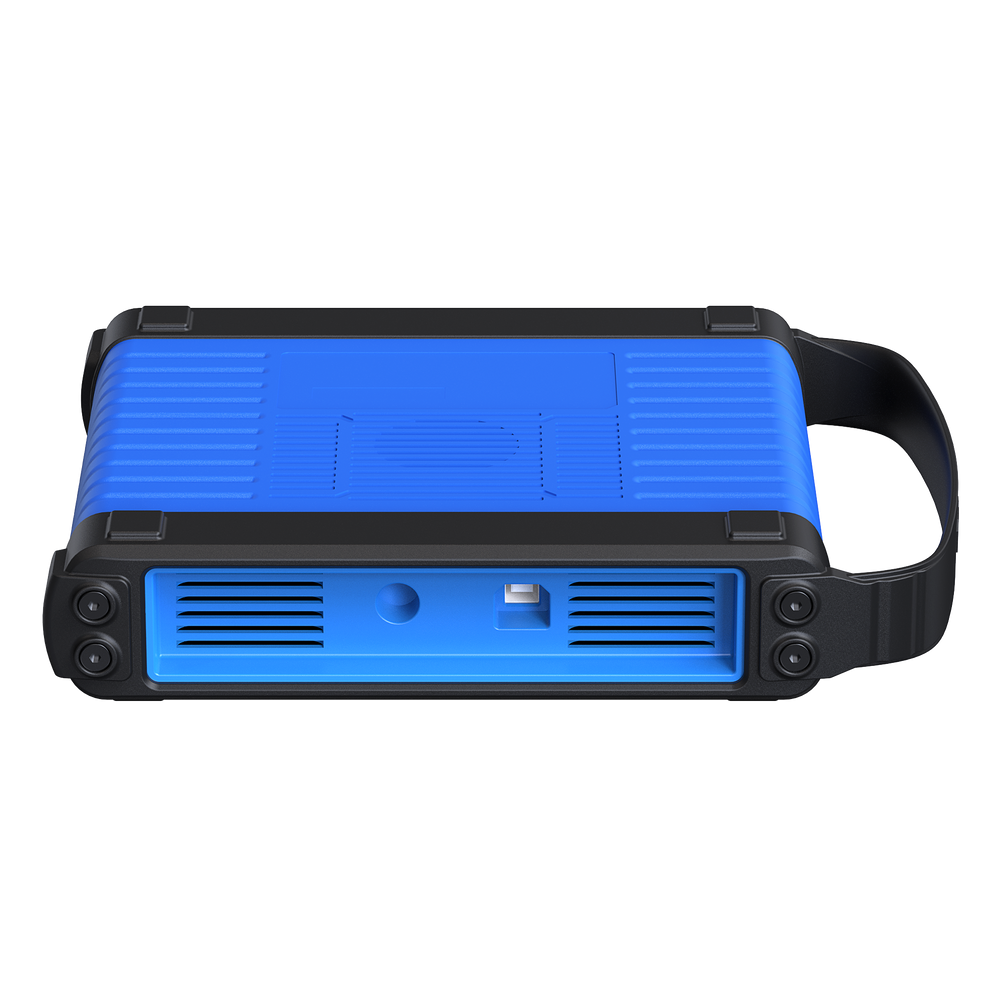

TOPDON Phoenix Scope 4 Channel Osciliscope with Accessories (works w/Phoenix Tools)

The Phoenix Scope is compatible with the Phoenix Max, Phoenix Smart, Phoenix Elite, Phoenix Lite 3, Phoenix Lite 2, Phoenix Plus, and Phoenix Plus 2. It does not work independently of these tools.

Displayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching, making automatic measurements useful and convenient.

Powerful Trigger Function: This feature supports edge, pulse width, and other triggers. Simple and intuitive setup with quick trigger source switching makes the most difficult parts of using the scope extremely easy.

With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed. The upper area can be browsed globally, and the lower area can be searched for details making debugging more than twice as fast.

Compared with ordinary scopes which require 3 to 5 steps, the Phoenix Scope can save waveforms with just one tap, reducing save time by more than 70%.

You can open horizontal and vertical cursors separately with
one tap. Each cursor can be dragged independently. Cursor tracking is achieved
directly through a simple highlight tap, increasing overall efficiency by more
than 80%.

When inputting names and characters, ordinary scopes can only use the knob to select characters one by one. The Phoenix Scope supports soft keyboard input, which improves efficiency by more than 90%.

Various preferred system settings are available and can be saved as configuration files. This allows you to load configuration files directly to view them according to your preferences without having to set them repeatedly.

The waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel.

This feature supports addition, subtraction, multiplication, and division calculations of two-channel waveforms in addition to Fast Fourier Transform.

This feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc. Various parameters and specific connection methods are preset for each kind of test.
