Process West Verticooler Top Mount Intercooler - Subaru WRX 2015-2021

2 sold in last 8 hours
$989.00
Process West
PWTMIC14
Snap Logo Lease for as low as $/week Learn More

customers are viewing this product
Process West Verticooler Top Mount Intercooler - Subaru WRX 2015-2021

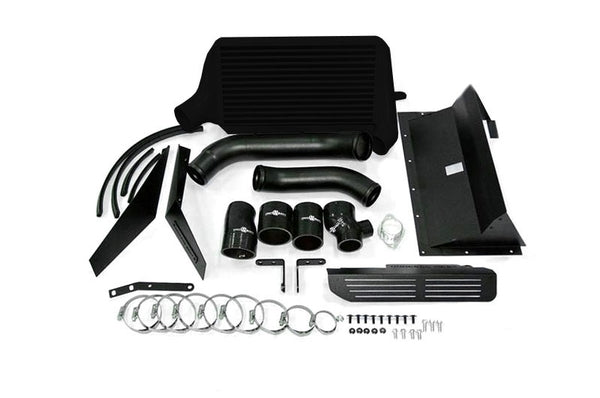

Taking a fresh approach formed from years of motorsport and component design experience, Process West are proud to announce the new 'Verti-Cooler' slant mount intercooler system of the Subaru WRX 08-16 and forester 08-12. Designed and engineered with rapid air-charge cooling and flow-path efficiency as the key objectives, Verti-Cooler is a revolutionary take on Subaru intercooler design that takes turbocharger cooling to a new and previously un-seen level, guaranteeing the best performance and improved engine durability.

ORIGINAL INTERCOOLING

Computer modeling and real world testing of the factory Subaru Top Mount Intercooler shows that while cooling effectively in short bursts, a lack of exit air path from the bottom side of the intercooler creates a virtual 'traffic jam' of hot air in the engine bay which rapidly reduces intercooler efficiency in demanding conditions. Making the stock mount intercooler larger does improve the rate at which heat-soak occurs but does little to address the critical factor of getting the heated air away from the intercooler body itself.

VERTI-COOLER ADVANTAGE:

Verti-Cooler combines the advantages of a large and free-flowing Process West core (400mm flow length, 205mm stack height, 120mm thick) with a design that mounts the new intercooler at a 15 degree, near vertical angle in the engine bay. Packaged with a new hood duct design that force-feeds external airflow straight onto the intercooler fins, there is now a highly efficient air exit path courtesy of the Verti-Cooler mounting angle that flows all of this (now heated) air back down through the engine bay and out the underside of the car through the transmission tunnel for a shallow, cool, and low restriction exit-path. Compare then the near on 90 degree angle that the air must turn with the stock intercooler setup in place, and the advantages of the Process West Verti-Cooler design become clear. Verti-cooler also has the largest volume of any aftermarket intercooler for the Subaru WRX 08-16 and forester 08-12, with core measurements of 400mm flow length x 205mm stack height x 120mm thick.

DETAILS:



  • Combines the advantages of a large and free-flowing core that mounts this new intercooler at a 15° near verticle angle at the engine bay
  • New hood duct design included that force-feeds external airflow straight onto the intercooler fins
  • The mounting angle creates a highly efficient air exit path which pushes air down the engine bay and out of the underside of the car
  • Largest volume of any aftermarket top mount style intercooler
  • 400mm Flow length x 205mm stack height x 1200 thick
  • Comes provided with multi-layered silicone fiber couplers
  • Comes provided with all the required brackets and hardware to make the Verticooler ready for the installation
  • Available in a Satin Silver or Satin Black finish


  •
