IAG 800 FA20 Subaru Closed Deck Short Block (10.5:1 Compression Ratio; 800BHP) - Subaru BRZ / Scion FR-S / Toyota 86 2013-2020
Lease for as low as $/week
IAG 800 FA20 FT86/BRZ 2.0L SUBARU SHORT BLOCK WITH 10.5:1 LOW COMPRESSION
GET MORE OUT OF YOUR BRZ/FT86

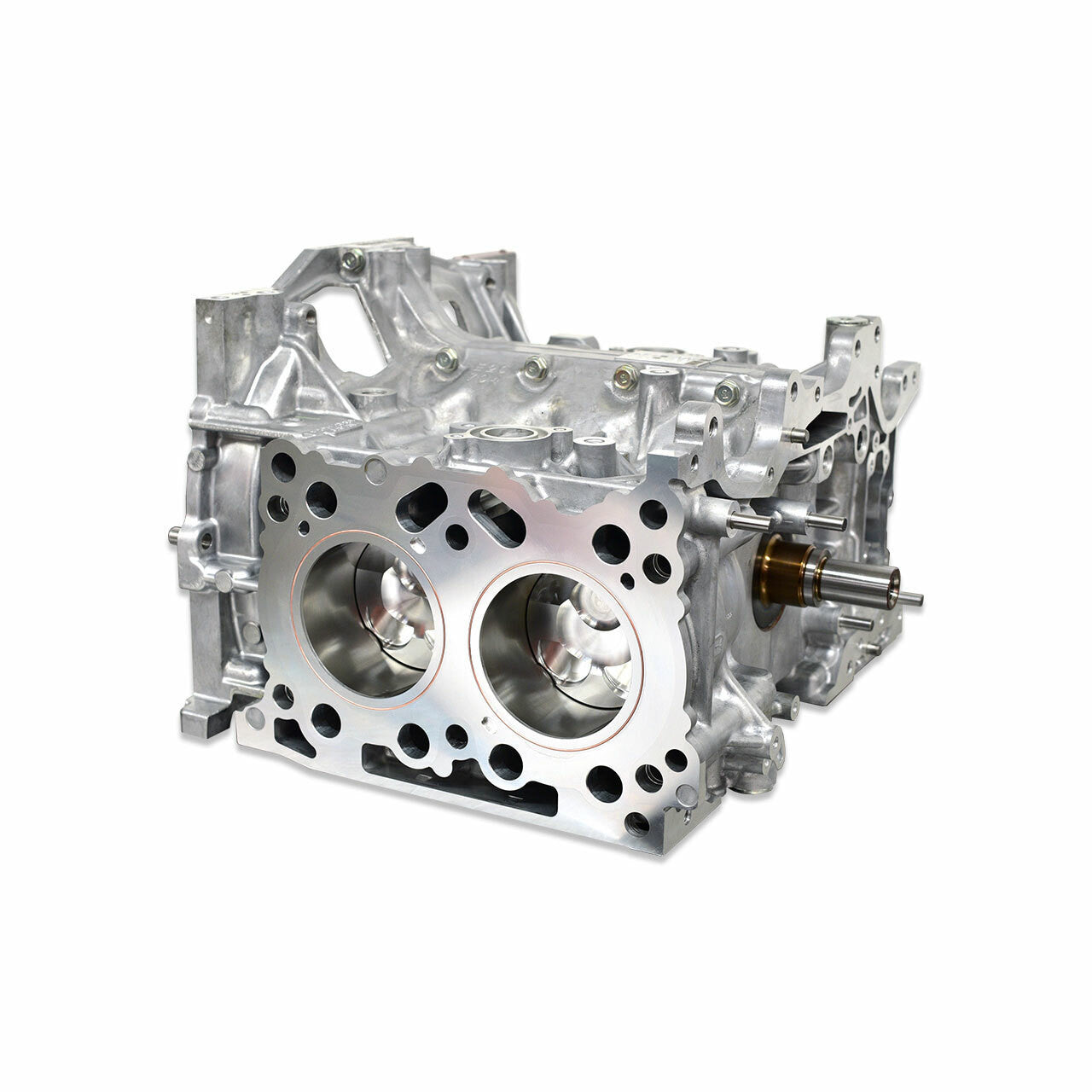

The IAG 800 Short Block is designed for modified FA20 Subaru BRZs or FT86s that need a stronger short block to support increased cylinder pressures created by larger aftermarket turbochargers. The IAG 800 short block features our proprietary closed-deck cylinder support system to strengthen the OEM FA20 cylinder walls. The short block is fitted with IAG Spec H-Beam forged connecting rods. Head gasket sealing is handled with the addition of an o-ring and 1/2" head studs for additional compression of the head gasket. These upgrades are ideal for those seeking to get the most out of their full bolt-on and upgraded turbo BRZs.
BUILT WITH 100% NEW COMPONENTS

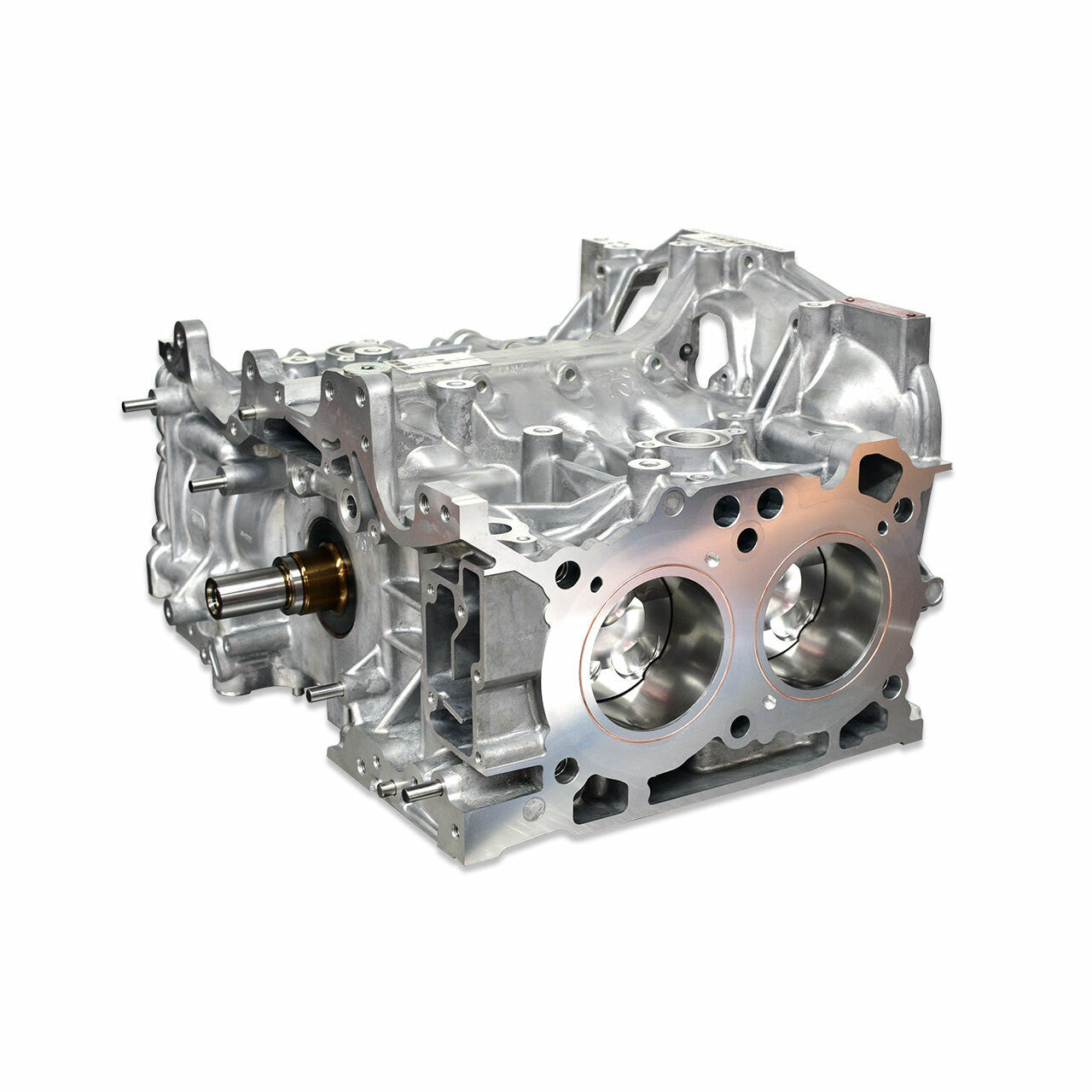

The IAG 800 short block starts with new Subaru FA 2.0L engine case halves that are machined for improved oiling. Then IAG machines the case halves assembled together in our Haas VF-4SS CNC mill to accept the IAG Closed Deck Inserts that transform the block into a solid deck. The unique inserts feature small passages that allow needed coolant flow to the deck surface. The case halves are then CNC machined with O-ring receiver grooves around the bore surface as well as drilled and tapped to accept 1/2" head studs that greatly reduce head gasket failure during high cylinder pressure scenarios. Next, the short block is Deck Plate bored and honed that to 86.1mm on our in-house Sunnen SV-30 cylinder hone. IAG's in-house honing process is able to set piston to wall clearances tighter for a quieter running engine. The short block is measured and assembled using a new 2020 Subaru FA20 crankshaft that is matched to ACL or King main bearings. IAG-Spec H-Beam rods with ARP2000 rod bolts are utilized, along with King or ACL rod bearings. The case halves are sealed with new OEM case bolts and sealant. Finally, IAG-Spec 86.1mm forged pistons are installed, along with an OEM oil plug finishing off the short block.
MODIFIED OIL PASSAGES FOR INCREASED OILING
Adequate oil flow is critical to performance and relibility. It's no secret that the OEM cases from Subaru leave something to be desired in the oiling department. Our machinists carefully inspect and modify the internal oil passages of each new OEM case used in the IAG 800 Short Block to ensure proper flow and reliability.
FORGED PISTONS, DESIGNED FOR BOOST

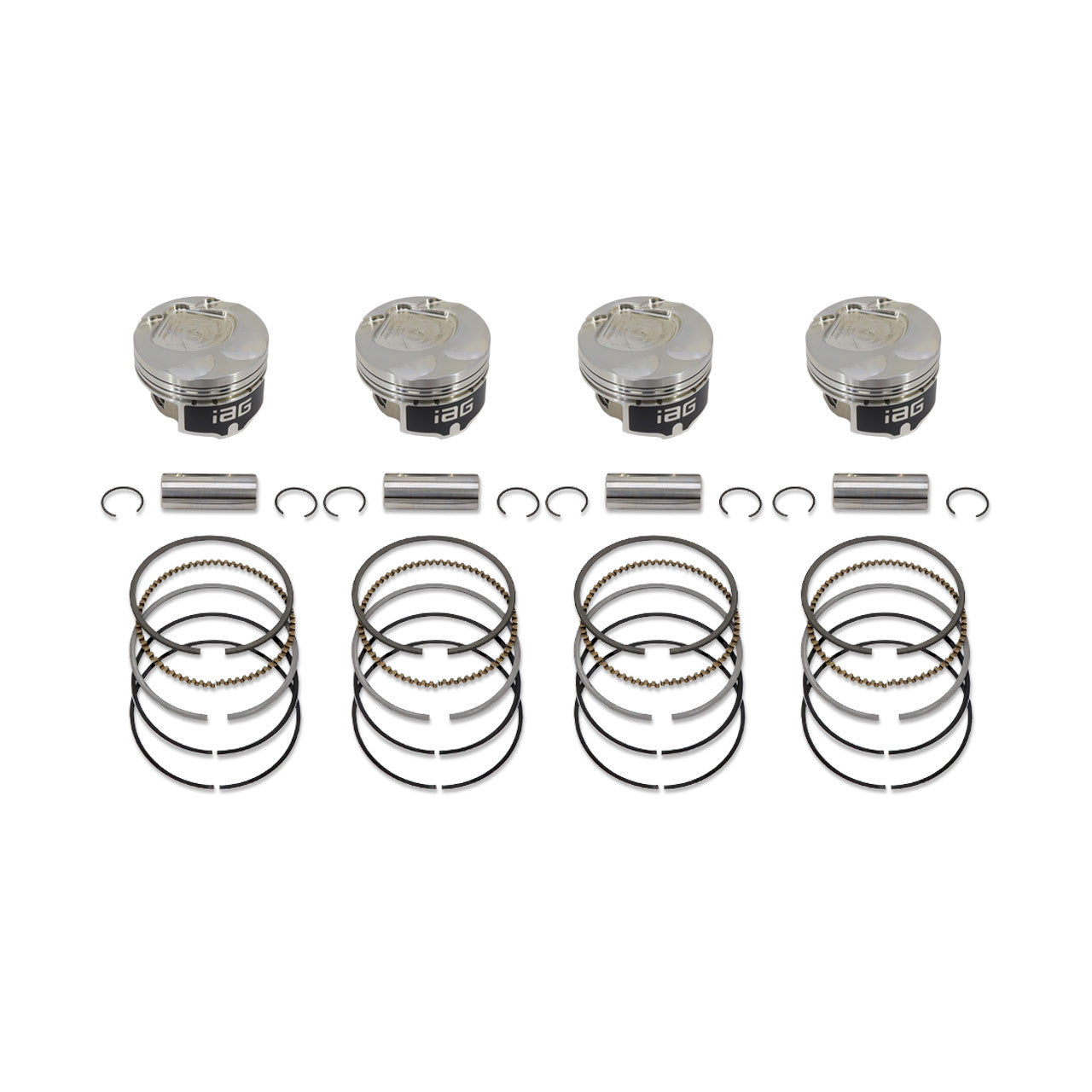

Each IAG 800 Short Block features IAG Spec JE FSR 86.1mm Forged Pistons. These 2618 T6 Alloy high-strength pistons have been specifically designed to support increased cylinder pressures which come with more boost. FSR forgings reduce mass and wear caused by friction without sacrificing strength. This is accomplished by using an asymmetrical skirt design instead of the traditional full-round skirt, also this reduces weight significantly. Featuring smooth flowing radii on the domes and dishes, the design promotes excellent flame travel. The pistons are secured to the rods with .905 x 2.250" x .210" wall carbon steel wrist pins with Tru Arc locks. Note: This block features 10.5:1 Lower Compression pistons which are ideal for higher boost and larger turbochargers.
IAG 800 FA20 2.0L BRZ/FT86 Low Compression Short Block Includes:
- Case Halves -Brand new OEM Subaru FA20 case halves, bored and honed to 86.1mm
- Case Machining - Modified for improved oiling
- Case Machining - Bored and honed to 86.1mm
- O-Ringing - Machine and O-Ring Deck Surface
- Head Studs - Machine Case for 1/2" head studs - *Head studs are sold separately
- Pistons -IAG-Spec 86.1mm Forged Pistons, Ring Set, and .210" x 2.250" Chromoly Wrist Pins. 10.5:1 Compression
- Connecting Rods -IAG-Spec H-Beam / ARP2000 Rod Bolts
- Rod -ACL or King XPG
- Main Bearings -OEM or King XPG
- Crankshaft -New Subaru FA20 crankshaft
- Case / Main Bolts -Standard Subaru case bolts
- Hardware - OEM Oil Plug - comes preinstalled at the oil pan location
Compression Ratio:
- 10.5:1 compression on standard gasket thickness.
Power: The IAG 800 Short Block has a power output rating of 800 BHP
Hardware / Seal Options:
Not planning on reusing your original short block oil plugs? IAG offers a simple comprehensive cover and seal kit that includes (1) Rear main seal and (3) OEM Oil Plugs.
* Never reuse a rear main seal on a new short block.
* Please note all IAG FA20 DIT Short Blocks come with the oil pan side plug preinstalled. This kit does not include that plug.
Installation Instructions:
Please review the PDF document below regarding installation, break-in procedures and warranty information.
PDF After Sale Document - Contains Shipping, Engine Care and Warranty Information
Quality Guaranteed
Available 24 Month/24,000 Mile Warranty*
IAG stands behind every hand-built engine they produce. IAG's Standard Short Block Workmanship Warranty covers your short block for 12 months or 12,000 miles. They have also teamed up with a selection of IAG Certified Installation Facilities which offer up to a 24 month/24,000 mile workmanship warranty when the engine is purchased, installed, and tuned by that IAG Certified Installer.
